Precision Pile Driving
Solutions for Every Site

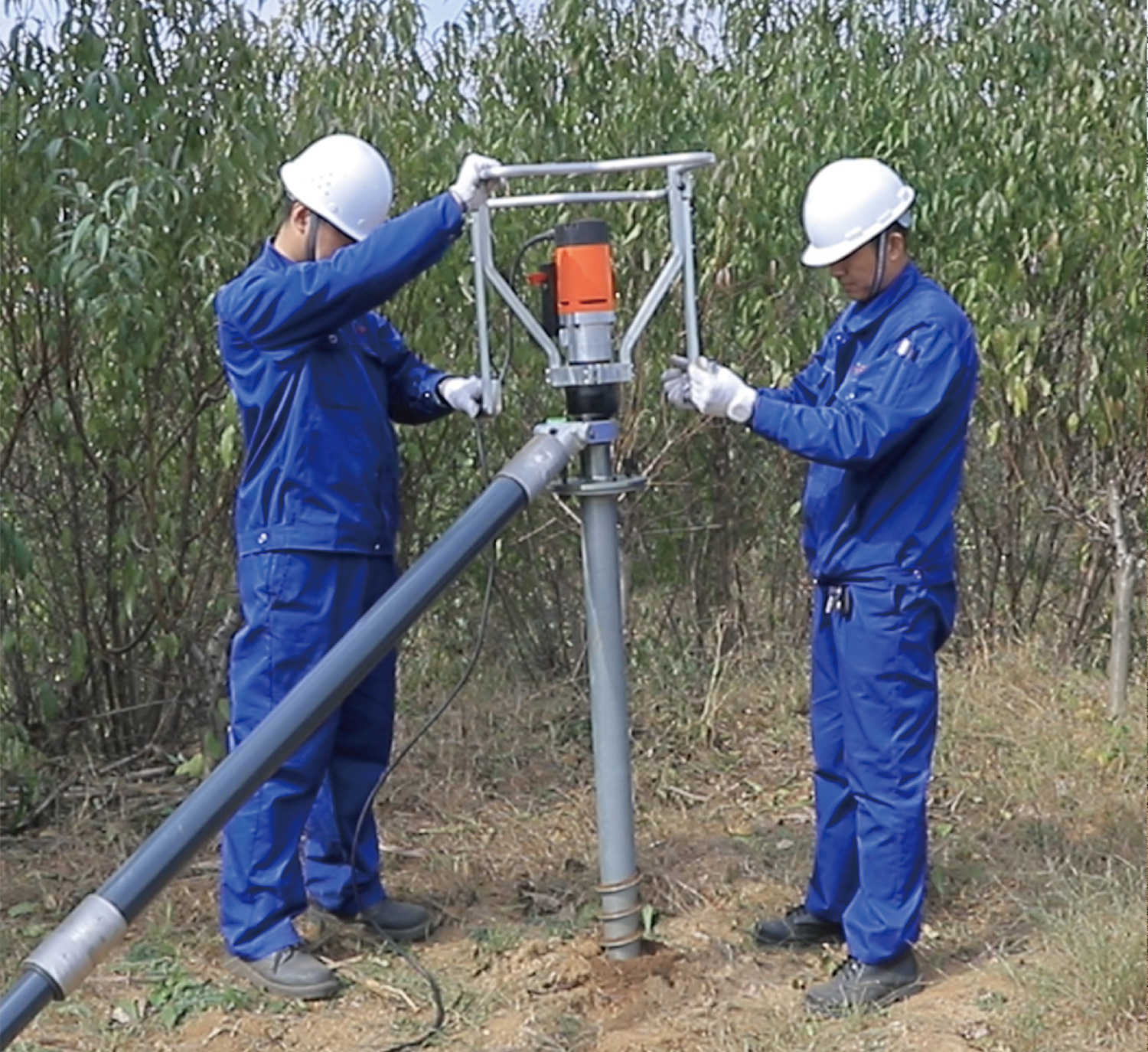

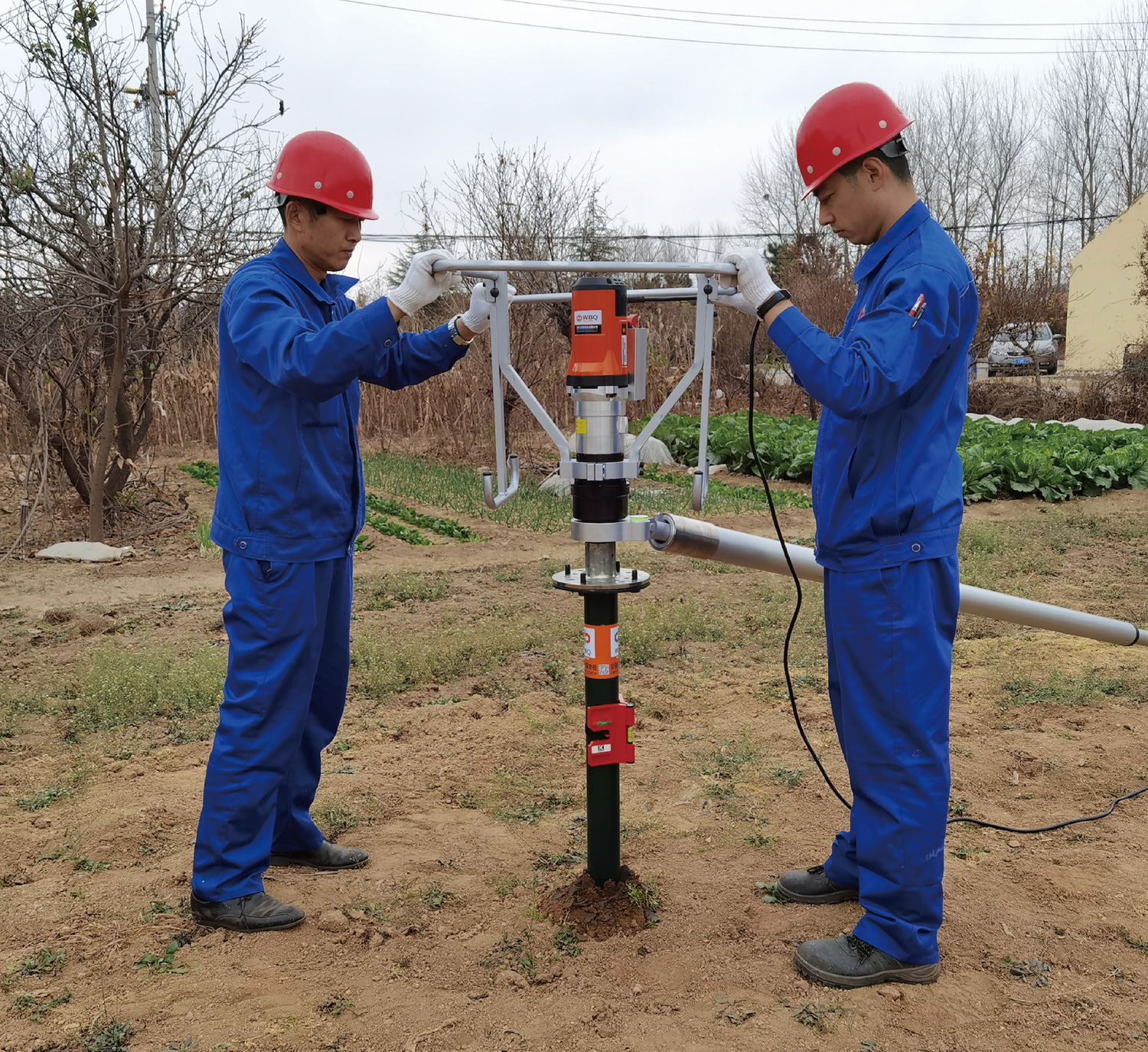

Electric Pile Driver
WBQ electric pile drivers are built for precise installation in confined and light-duty job sites. Powered by reliable imported motors, they ensure stable performance, long service life, and minimal maintenance.
With a standard 220V power supply, the machine is easy to deploy across various environments without complex setup.
Ideal for:
• Small-scale ground screw installation
• Narrow or restricted areas
• Waterfront and remote locations
• Sloped or uneven terrain
PARAMETER
 |
Protection form | Class II double insulation |
|
Usage frequency | 50-60 Hz |
|
Operating voltage | AC110/220 V |
|
Rated power | 1500 W |
|
Maximum torque | Max1800 N·m |
|
Rated high speed (rpm) | 15 r/min |
|
Suggested maximum construction pile type | 76×1200 mm |
|
Net weight of main engine (kg) | 9.2 kg |
PARAMETER
|
Protection form | Class II double insulation |
|
Usage frequency | 50-60 Hz |
|
Operating voltage | AC110/220 V |
|
Rated power | 2920 W |
|
Maximum torque | Max5300 N·m |
|
Rated high speed (rpm) | 20 r/min |
|
Suggested maximum construction pile type | 76×2000 mm |
|
Net weight of main engine (kg) | 15.4 kg |
PARAMETER
|
Protection form | Class II double insulation |
|
Usage frequency | 50-60 Hz |
|
Operating voltage | AC220 V |
|
Rated power | 4600 W |
|
Maximum torque | Max 7700 N·m |
|
Rated high speed (rpm) | 11 r/min |
|
Suggested maximum construction pile type | 114 × 3000 mm |
|
Net weight of main engine (kg) | 22.9 kg |
SYSTEM COMPONENTS
WBQ Customized drill pipe(reinforced)
WBQ Extension shaft
WBQ Anti swing bracket
Drill Teeth & Center Drill
Get More Details on WBQ Pile Driving Equipment
application scenario
Why Choose WBQ Electric Pile Drivers
Efficient, precise, and easy-to-deploy solutions for light-duty piling
High Efficiency
Complete piling tasks faster while reducing labor costs.
Stable Performance
Equipped with imported motors for consistent and long-term operation.
Precise Control
Ensures accurate rotation and controlled pile depth for reliable results.
Easy Operation
Simple setup and user-friendly design for quick deployment.
