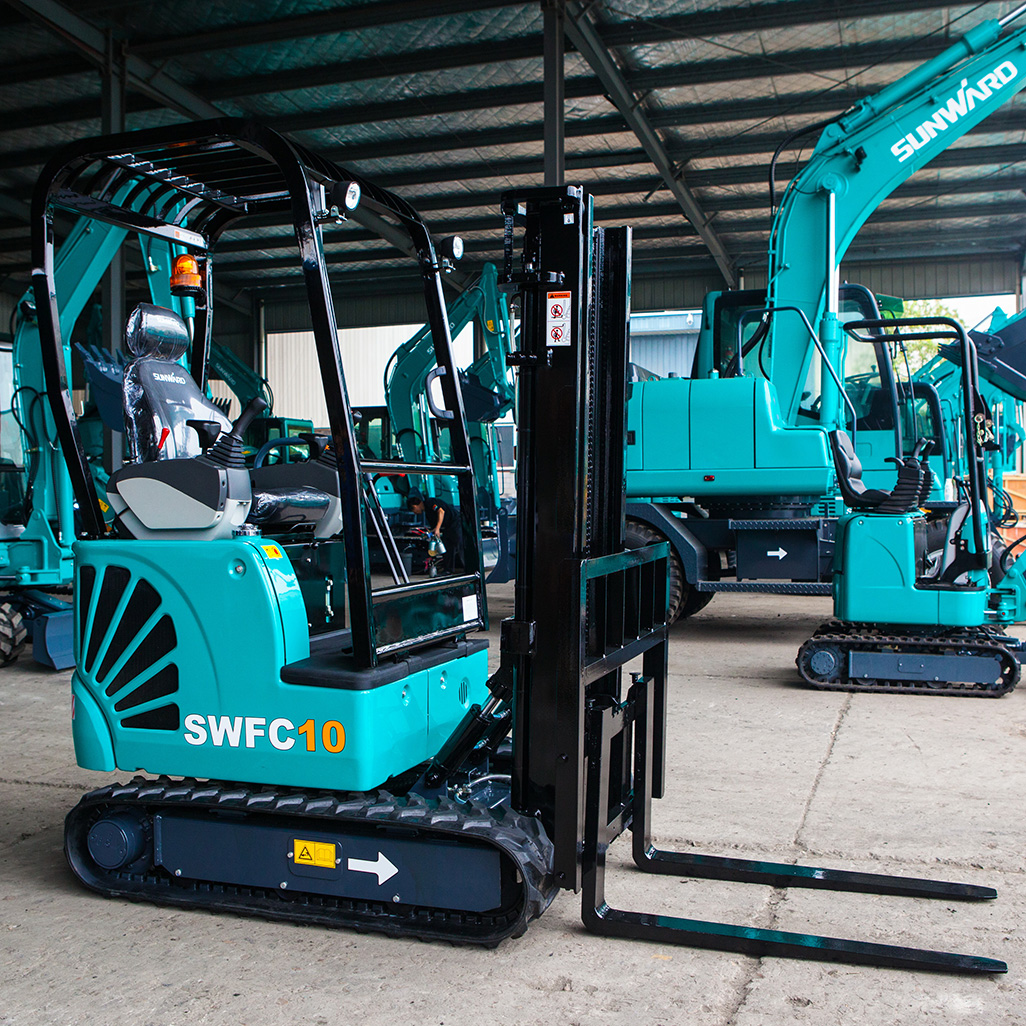

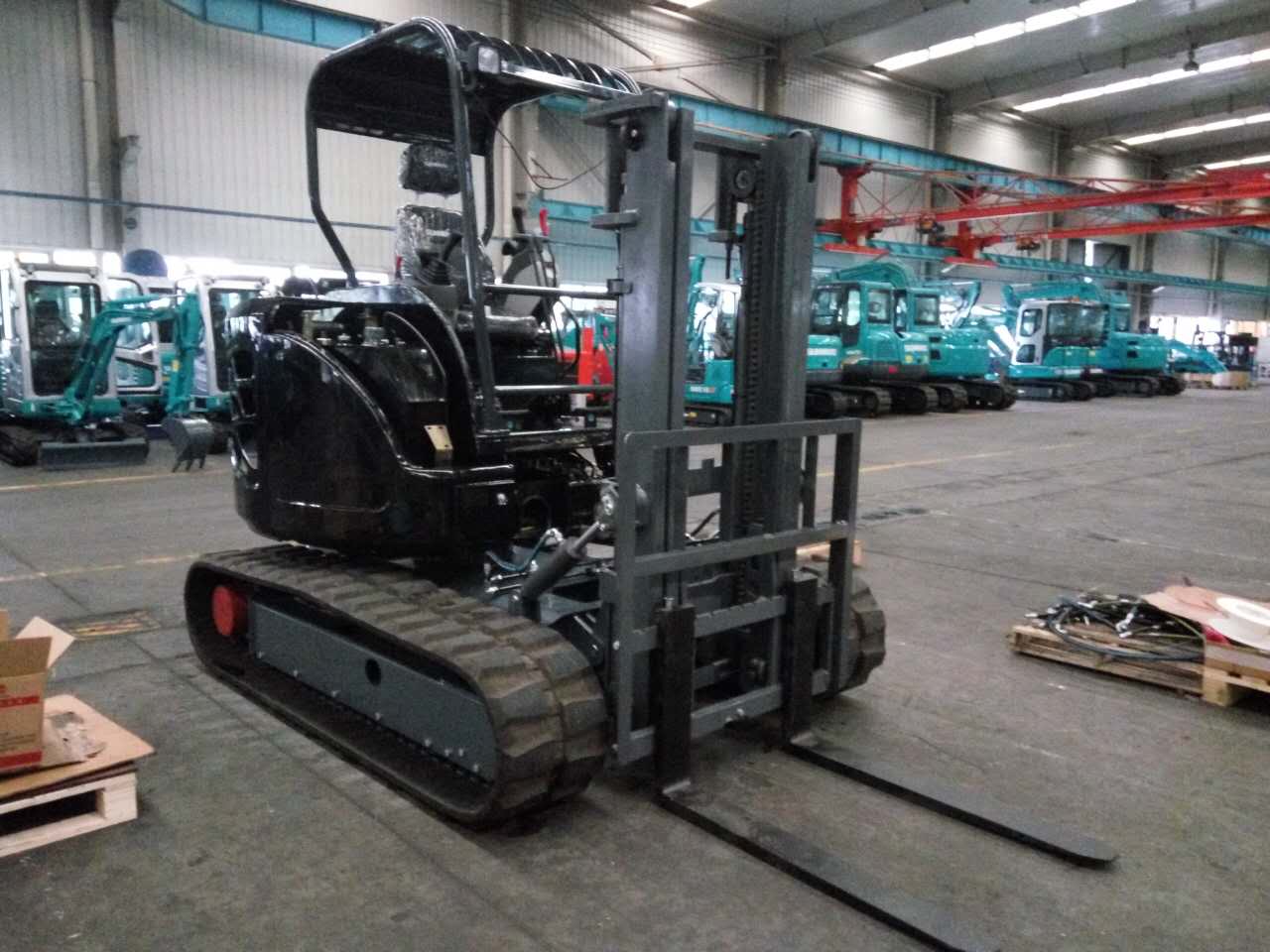

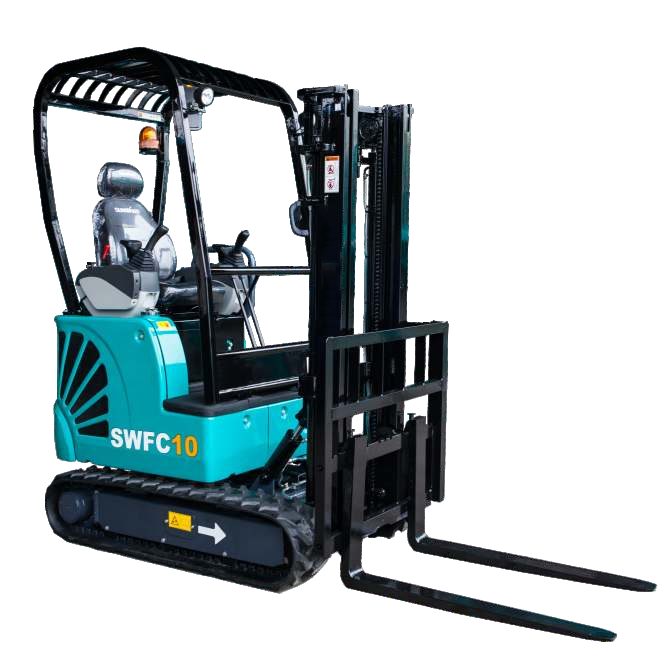

WBQ Crawler Forklift Series
Power ● Precision ● Performance

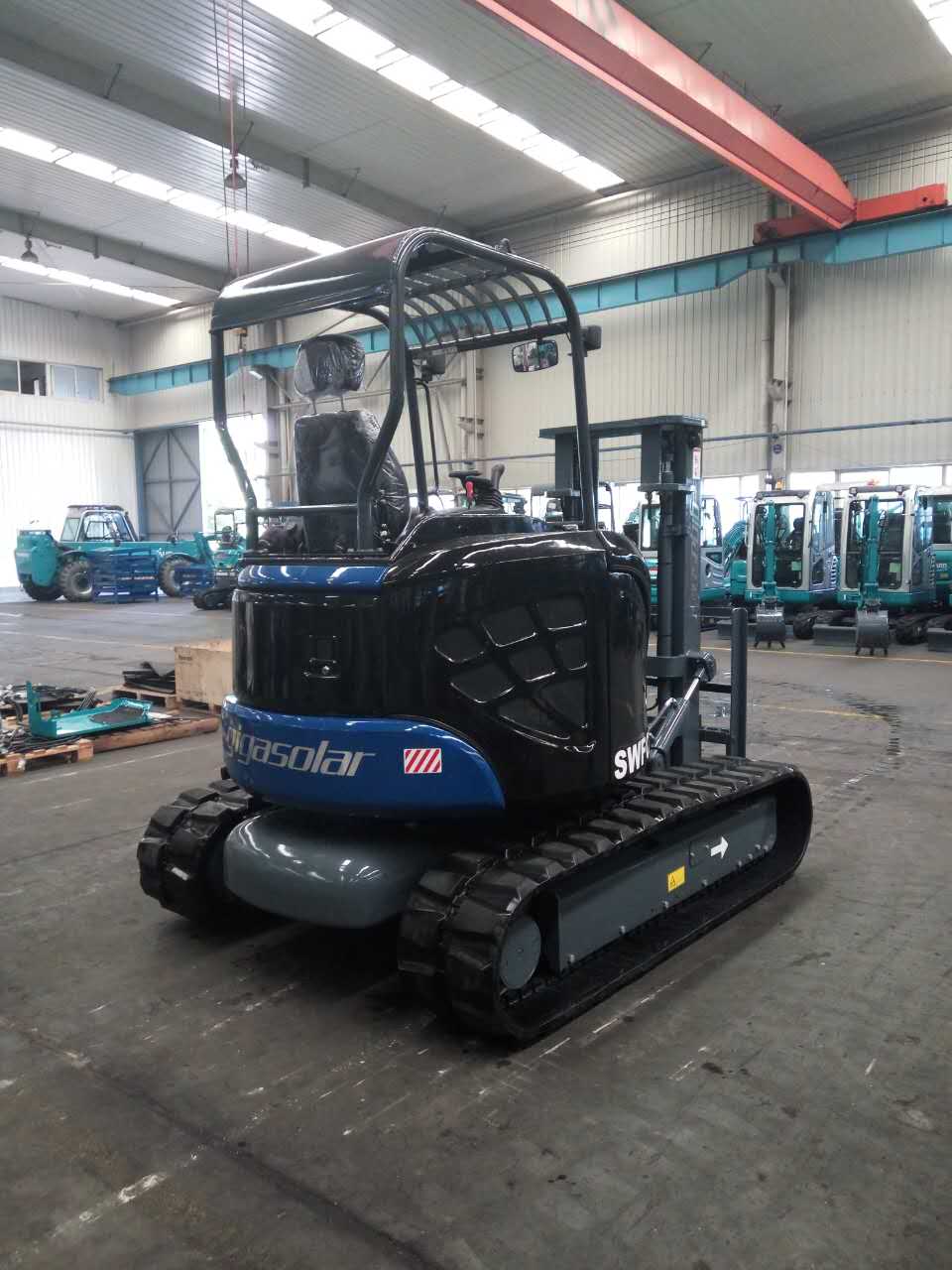

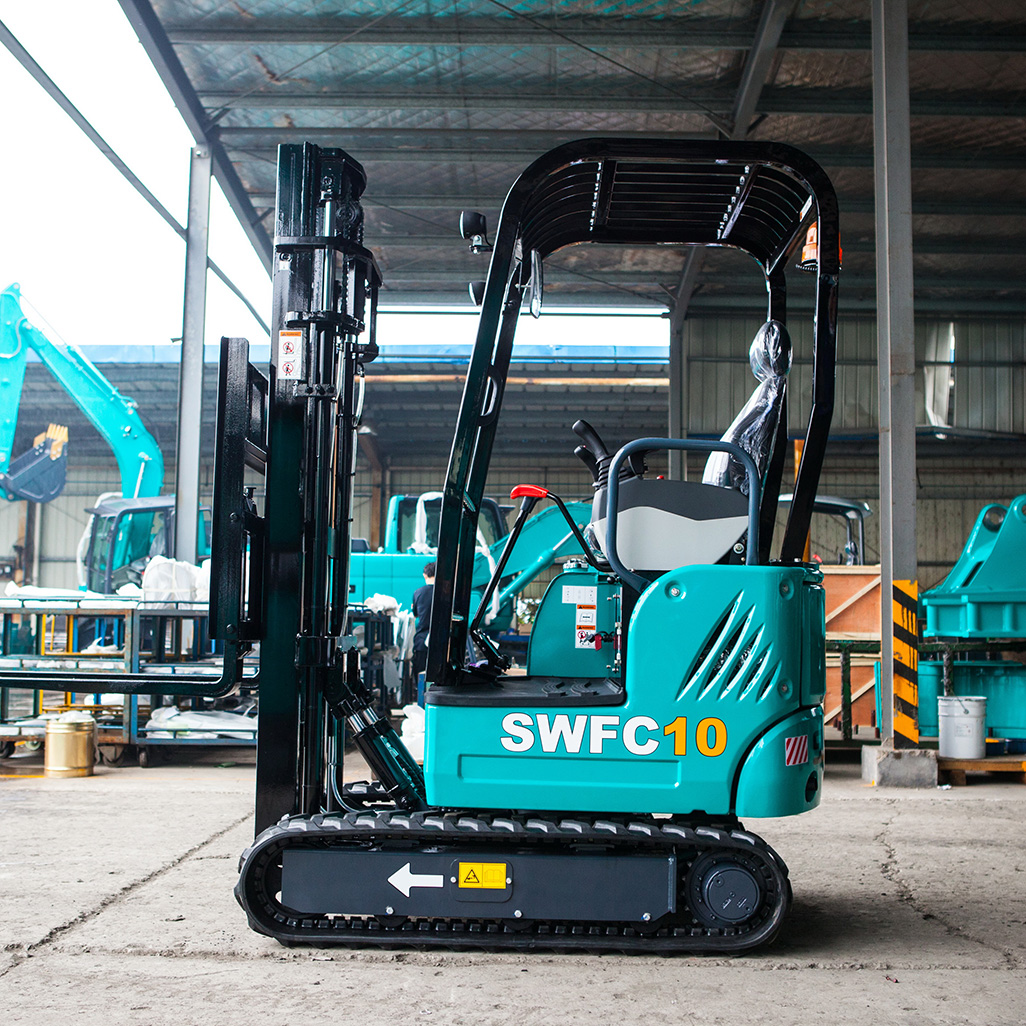

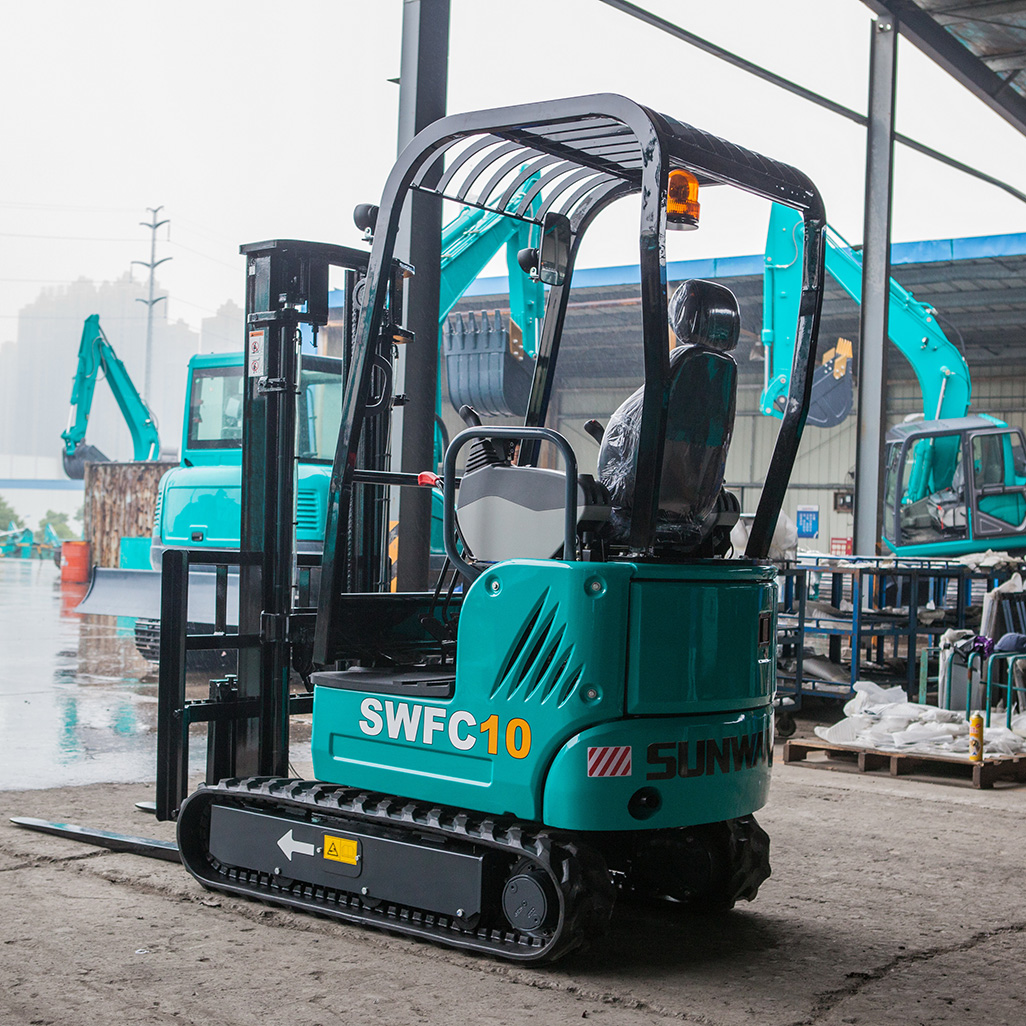

High-Performance Crawler Forklifts for Challenging Terrain
WBQ crawler forklifts deliver stable power, exceptional traction, and precise control across uneven, soft, or confined sites. Equipped with YANMAR and KUBOTA engines and fully hydraulic systems, they ensure smooth operation, reliable cooling, and long-term durability. The tracked chassis enhances mobility on soft soil and steep slopes, while the open operator area provides safety, visibility, and efficient handling.
main features
YANMAR engine with imported hydraulic system for stability and long-lasting performance.
YANMAR engine with imported hydraulic system for stability and long-lasting performance.

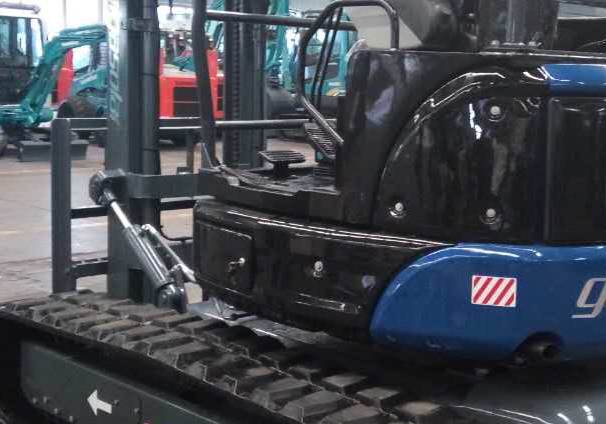

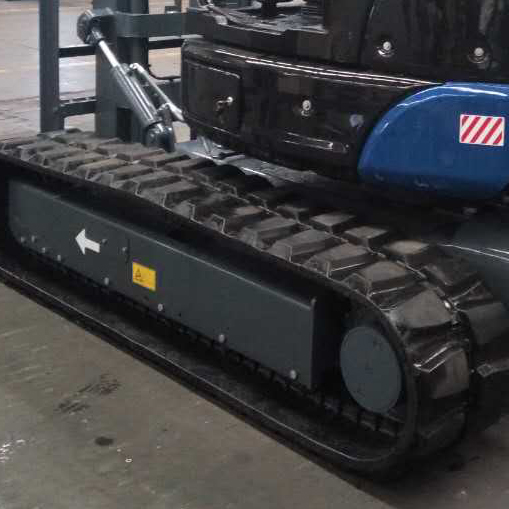

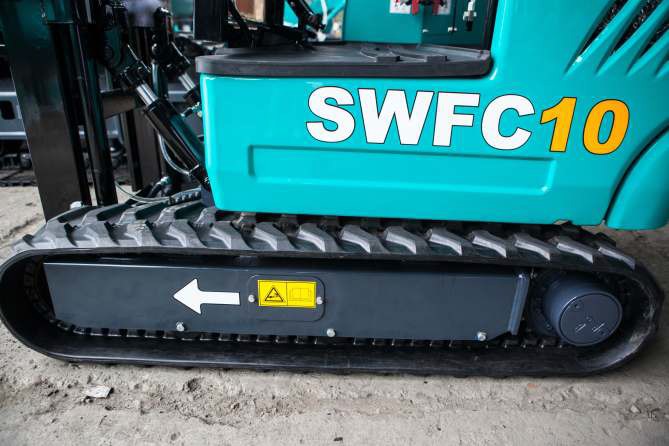

Tracked chassis enables agile operation across diverse and challenging ground conditions.
Tracked chassis enables agile operation across diverse and challenging ground conditions.

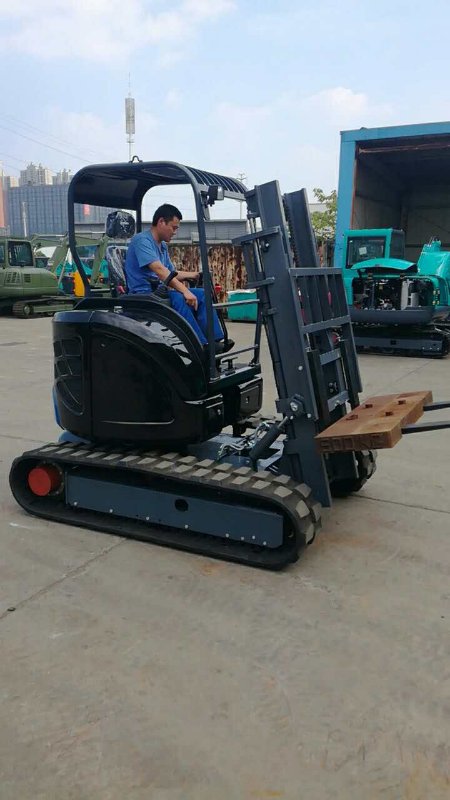

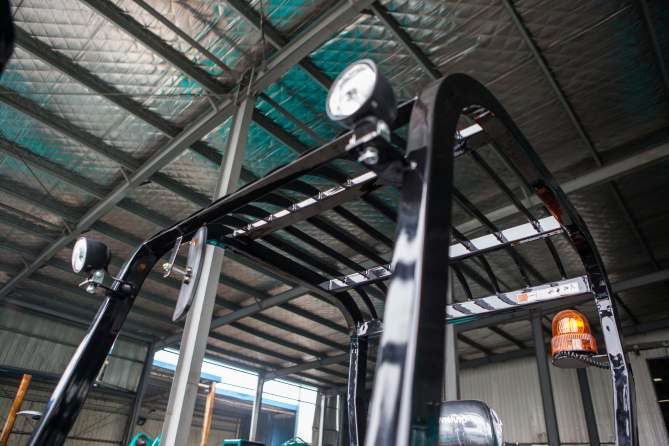

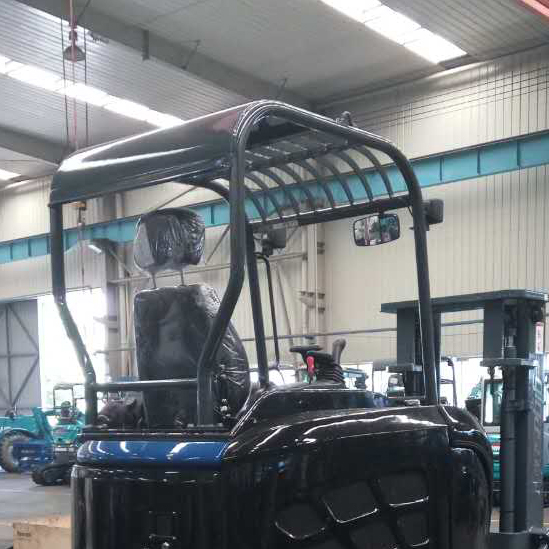

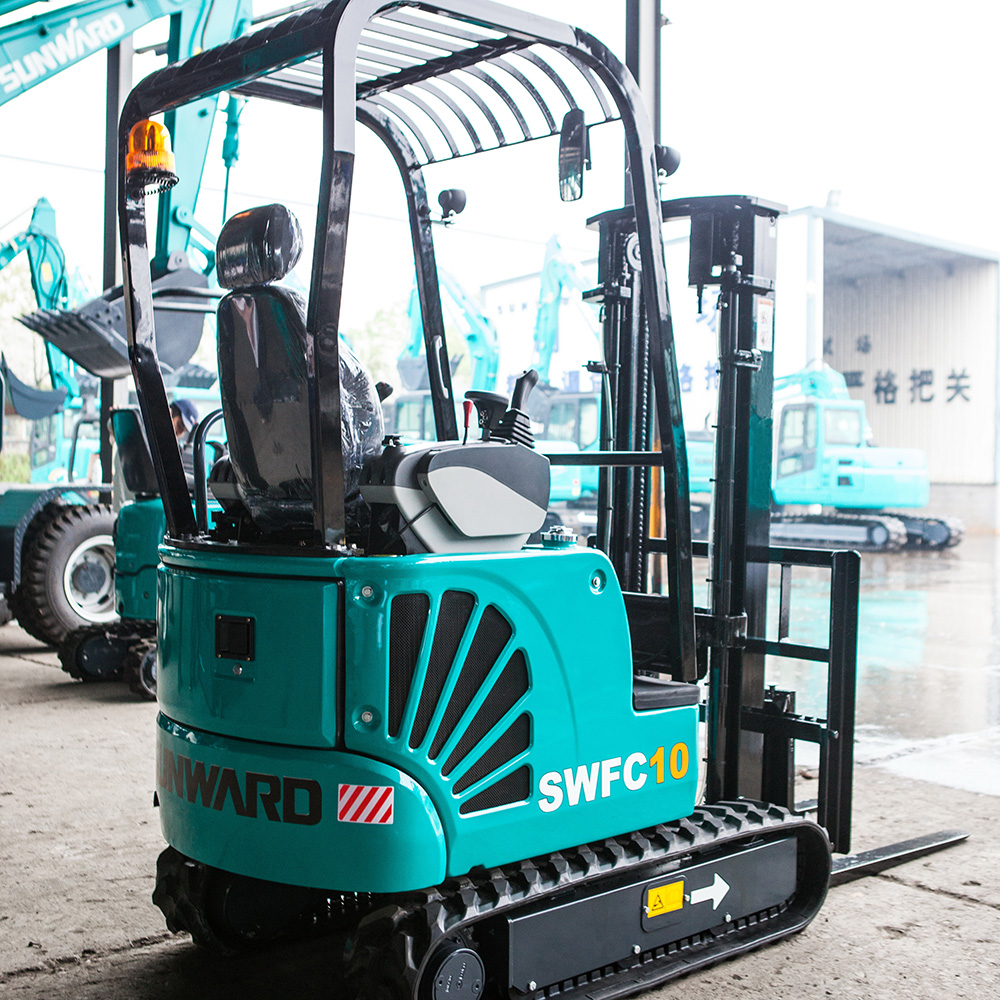

Open-top operator area offers spacious seating, clear visibility, and secure handling.
Open-top operator area offers spacious seating, clear visibility, and secure handling.
All functions, including driving, lifting, and mast tilt, are controlled via imported hydraulic pilot system, reducing effort and ensuring smooth, precise operation.
Compact design with small turning radius allows efficient work in tight spaces.
All functions, including driving, lifting, and mast tilt, are controlled via imported hydraulic pilot system, reducing effort and ensuring smooth, precise operation.
Compact design with small turning radius allows efficient work in tight spaces.
Compact design with small turning radius allows efficient work in tight spaces.
PARAMETER
 |
Overall dimensions (length x width x height) (mm) | Fork size (length × width × thickness) (mm) |
| 1832 x 1090 x 2356 | 920×100×35 | |
| |
Rated lifting capacity (kg) | Descending speed (mm/s) |
| 1000 | 600 | |
| |
Total weight (kg) | Engine brand |
| 1800 | Yanmar | |
| |
Maximum driving speed (km/h) | Engine model |
| 3.5 | 3TNV76-SSU | |
| |
Maximum Climbing Slope | Displacement (L) |
| 25 | 1.116 | |
| |
Maximum traction force (kN) | Cooling method |
| 16.7 | 3-cylinder, 4-stroke, water-cooled | |
| |
Minimum turning radius (mm) | Power (Kw/rpm) |
| 1850 | 13.3/2200 | |
| |
Load center distance (mm) | Chassis width (mm) |
| 500 | 1090 | |
| |
Maximum lifting height (mm) | Chassis ground clearance (mm) |
| 3000 | 150 | |
| |
Gantry rake angle | Total length of track (mm) |
| 6 | 1538 | |
| |
Gantry Castor | Track width (mm) |
| 12 | 230 | |
| |
Rising speed (mm/s) | Track height (mm) |
| 566 | 352 |
main features

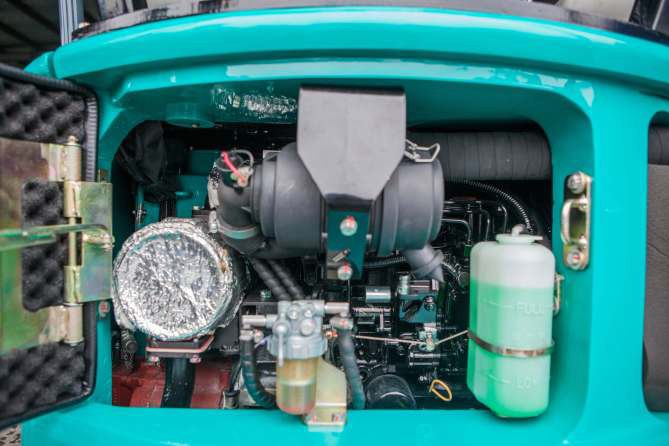

Japanese KUBOTA D1803 water-cooled diesel engine, 23.8 kW @ 2300 rpm, mounted transversely on elastic supports for reduced vibration and enhanced reliability.
Japanese KUBOTA D1803 water-cooled diesel engine, 23.8 kW @ 2300 rpm, mounted transversely on elastic supports for reduced vibration and enhanced reliability.
Engine air intake equipped with safety elements to ensure stable operation under demanding conditions.
Engine air intake equipped with safety elements to ensure stable operation under demanding conditions.
Large-capacity, deaerated water tank keeps the engine protected and prevents overheating, even in high ambient temperatures.
Large-capacity, deaerated water tank keeps the engine protected and prevents overheating, even in high ambient temperatures.
Main hydraulic pump flange-mounted to the engine, with elastic coupling to absorb vibrations, delivering smooth, precise hydraulic performance at 23.5 MPa.
Optimized layout and direct-drive system improve operational efficiency and extend service life.
Main hydraulic pump flange-mounted to the engine, with elastic coupling to absorb vibrations, delivering smooth, precise hydraulic performance at 23.5 MPa.
Optimized layout and direct-drive system improve operational efficiency and extend service life.
Optimized layout and direct-drive system improve operational efficiency and extend service life.
PARAMETER
| |
Overall dimensions (length x width x height) (mm) | Fork size (length × width × thickness) (mm) |
| 3500 x 1740 x 2540 | 1070×122×40 | |
| |
Rated lifting capacity (kg) | Descending speed (mm/s) |
| 2500 | 600 | |
| |
Total weight (kg) | Engine brand |
| 4200 | Kubota | |
| |
Maximum driving speed (km/h) | Engine model |
| 3.5 | D1803-M-DI-E38-SW | |
| |
Maximum Climbing Slope | Displacement (L) |
| 25 | 1.826 | |
| |
Maximum traction force (kN) | Cooling method |
| 33.5 | 3V, 4Stroke, water cool | |
| |
Minimum turning radius (mm) | Power (Kw/rpm) |
| 3000 | 23.8/2300 | |
| |
Load center distance (mm) | Chassis width (mm) |
| 500 | 1740 | |
| |
Maximum lifting height (mm) | Chassis ground clearance (mm) |
| 3000 | 262 | |
| |
Gantry rake angle | Total length of track (mm) |
| 6 | 2143 | |
| |
Gantry Castor | Track width (mm) |
| 12 | 300 | |
| |
Rising speed (mm/s) | Track height (mm) |
| 430 | 522 |
More Information About WBQ Crawler Forklift Series
Why Choose WBQ Crawler Forklifts
Safe ● Efficient ● Reliable on Any Terrain
Power
Stable traction
Control
Flexible hydraulic
Durable
Long engine life
Safety
Wide clear visibility
