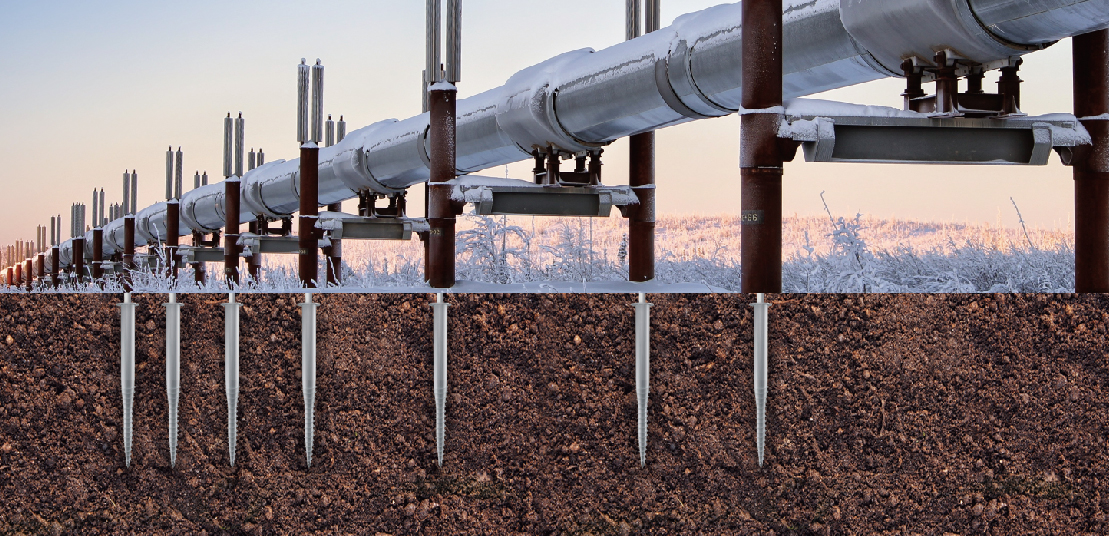

WBQ Irregular Series<br /> Custom Foundations for Complex Projects

WBQ Irregular Series
Custom Foundations for Complex Projects

Engineered solutions for non-standard conditions
Proven in solar and infrastructure applications

WBQ Irregular Series

Engineered Flexibility for Real-World Challenges

WBQ Irregular Series provides customized ground foundation solutions for complex site conditions and non-standard structural requirements.

From adjustable piles to finned and structural steel designs, each solution is engineered for reliable load performance and efficient installation.

With durable galvanization and project-specific design support, this series enables EPC contractors to tackle challenging environments with confidence.

Explore WBQ Ground Screw Solutions

Product Sheet Send Inquiry

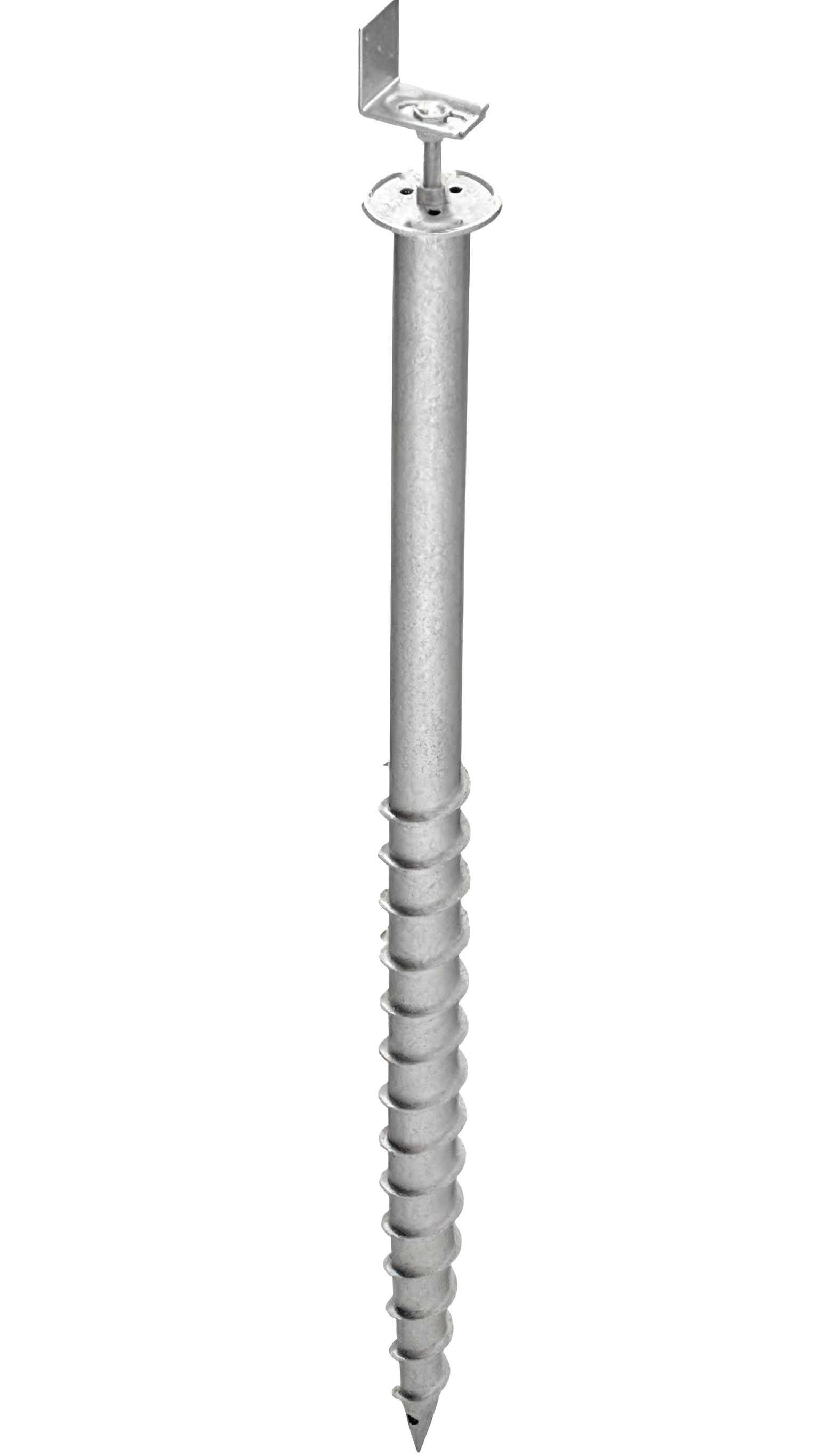

WBQ ADJUSTMENT PILES

Article number: WBQ F76×800/1000/1200/1500/1600
Material: Q235B/Q355B
Surface treatment: Hot dip galvanized, average thickness 80 μm

Details Send Inquiry

WBQ ADJUSTMENT PILES

  • Article number

    WBQ F76×800/1000/1200/1500/1600

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Length

    800/1000/1200/1500/1600 mm

  • Pipe outer diameter

    76 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ ADJUSTMENT PILES
    Details Send Inquiry

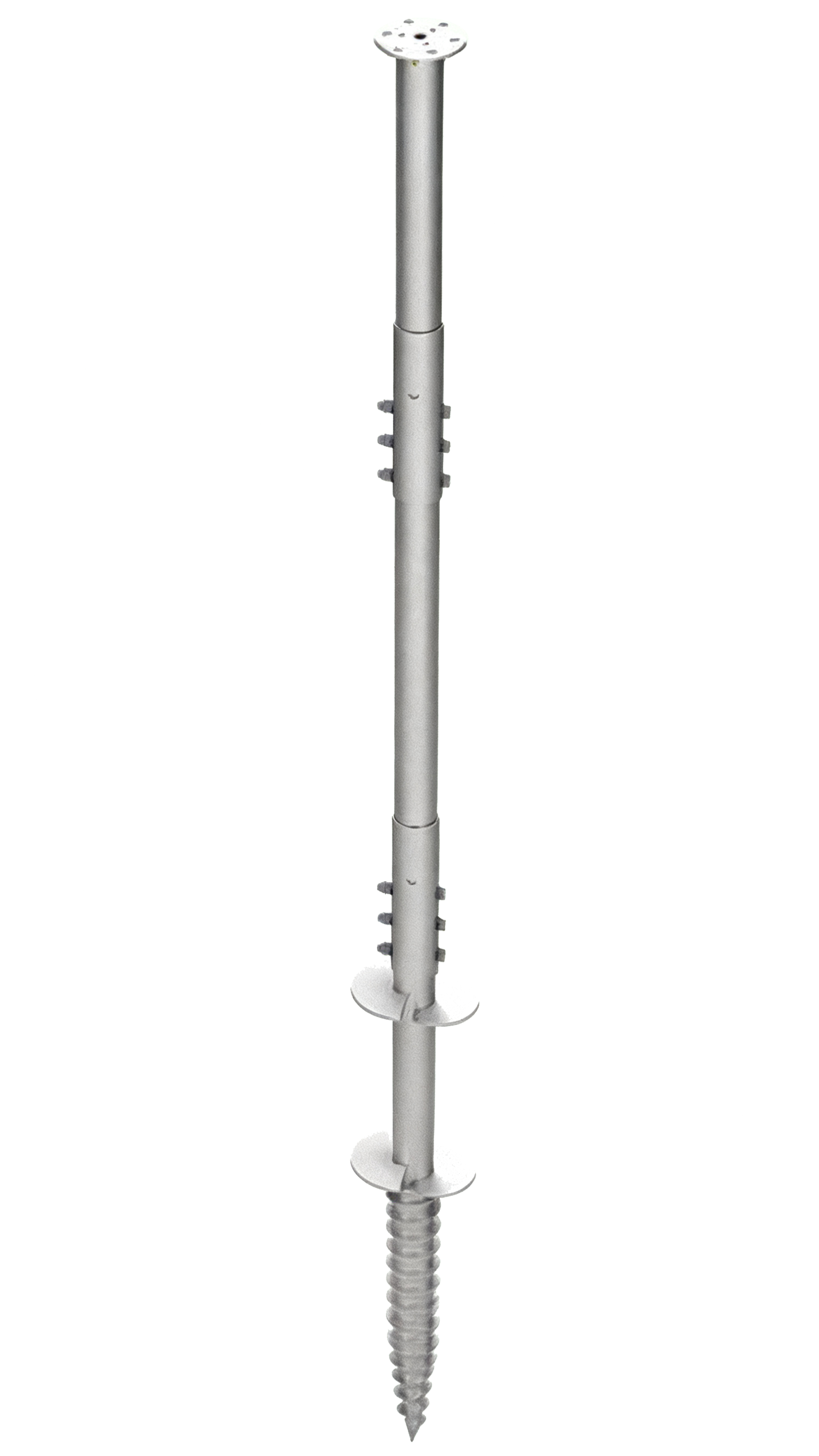

    WBQ EXTENSION PILES

    Article number: WBQ F76-140×5000-12000
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanized, average thickness 80 μm

    Details Send Inquiry

    WBQ EXTENSION PILES

  • Article number

    WBQ F76-140×5000-12000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Length

    5000-12000 mm

  • Pipe outer diameter

    76-140 mm

  • Pipe wall thickness

    4-12 mm

    • WBQ EXTENSION PILES
    Details Send Inquiry

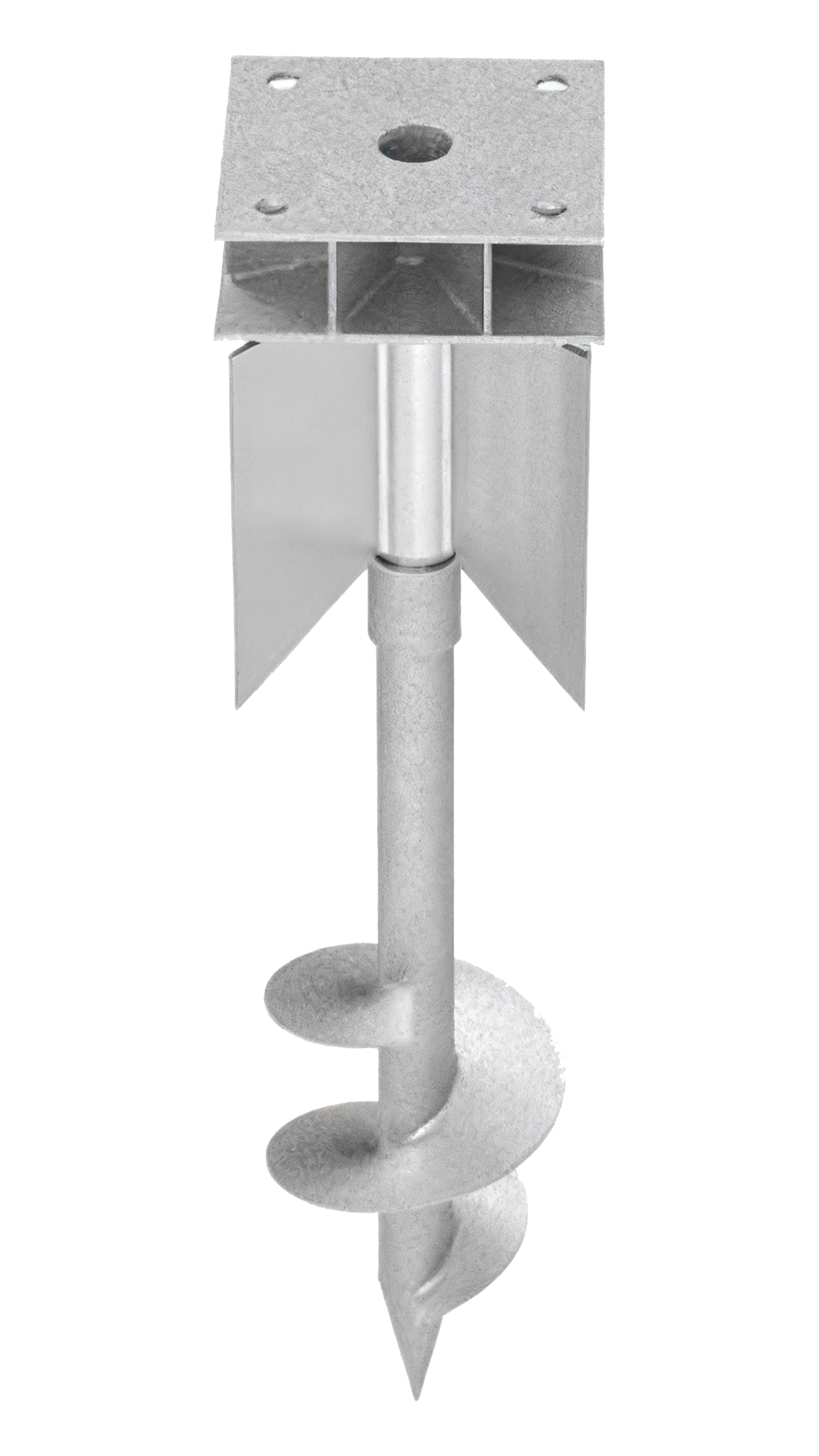

    WBQ STREET LAMP GROUND PILES

    Article number: WBQ F76-114×2000/2500/3000/3500/4000
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanized, average thickness 80 μm

    Details Send Inquiry

    WBQ STREET LAMP GROUND PILES

  • Article number

    WBQ F76-114×2000/2500/3000/3500/4000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Length

    2000/2500/3000/3500/4000 mm

  • Pipe outer diameter

    76-114 mm

  • Pipe wall thickness

    3-6 mm

    • WBQ STREET LAMP GROUND PILES
    Details Send Inquiry

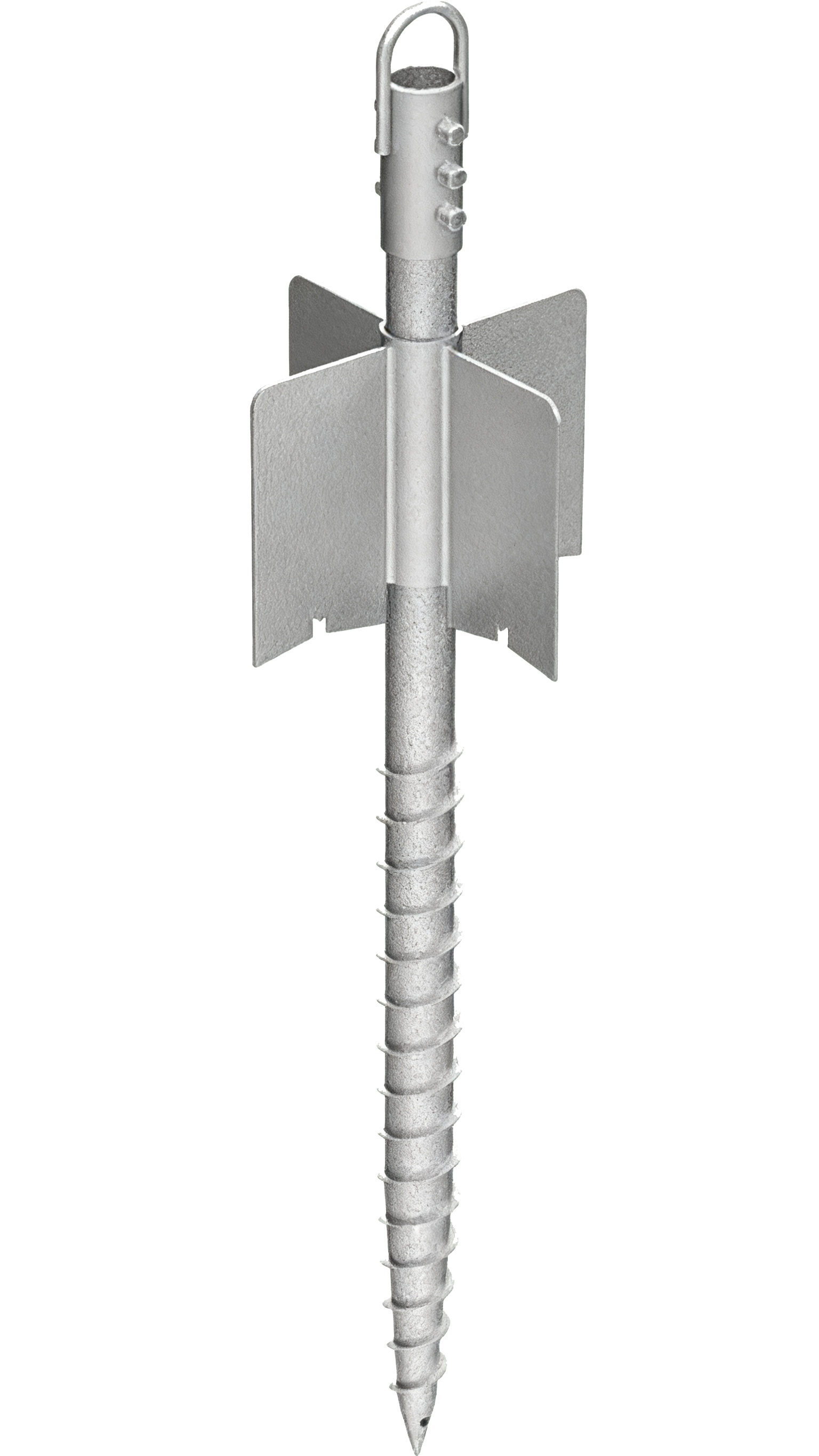

    WBQ GROUND PILES WITH FINS

    Article number: WBQ F76/89×1600/1800/2000/2500/3000
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanized, average thickness 80 μm

    Details Send Inquiry

    WBQ GROUND PILES WITH FINS

  • Article number

    WBQ F76/89×1600/1800/2000/2500/3000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Length

    1600/1800/2000/2500/3000 mm

  • Pipe outer diameter

    76/89/114 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ GROUND PILES WITH FINS
    Details Send Inquiry

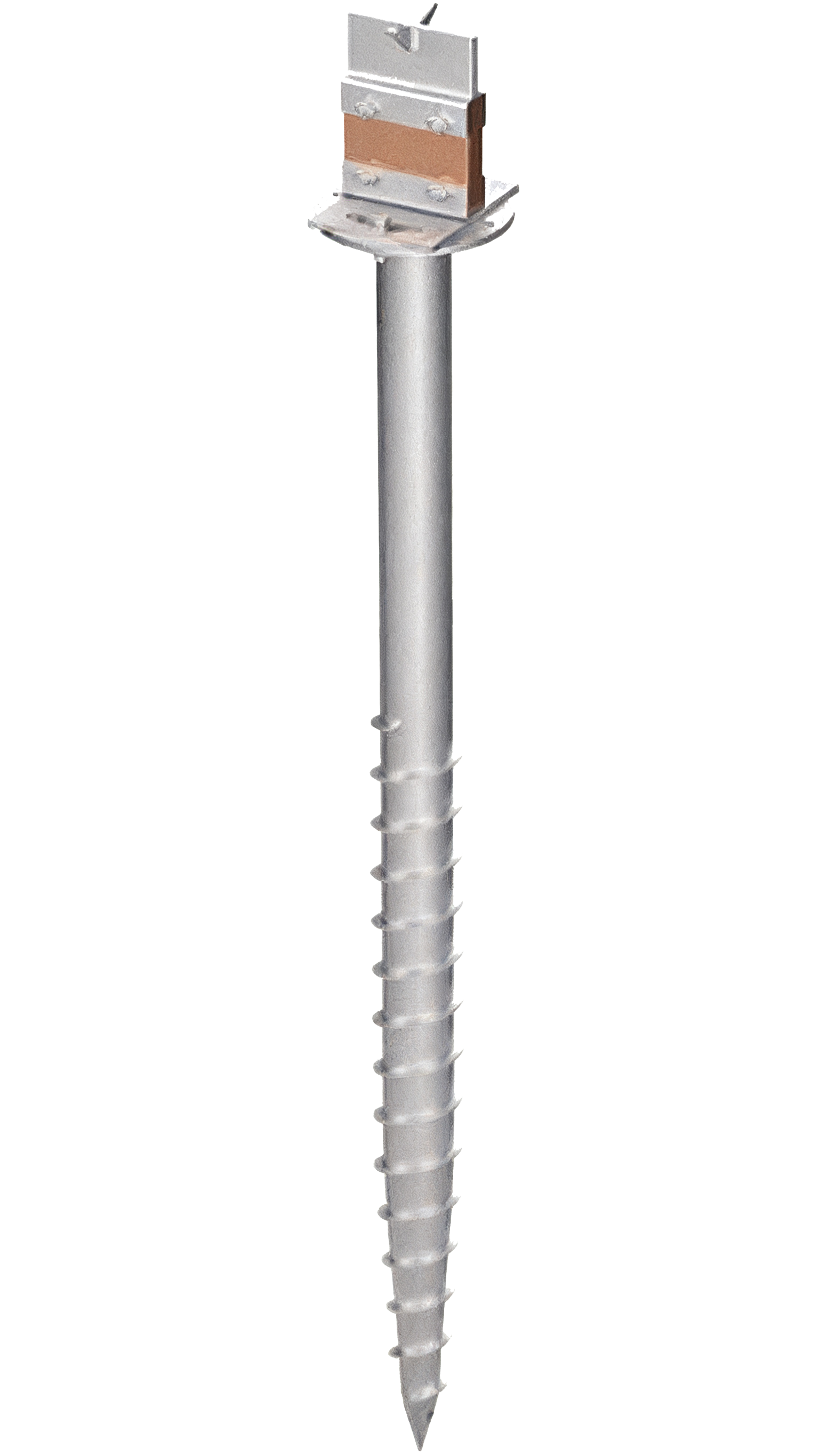

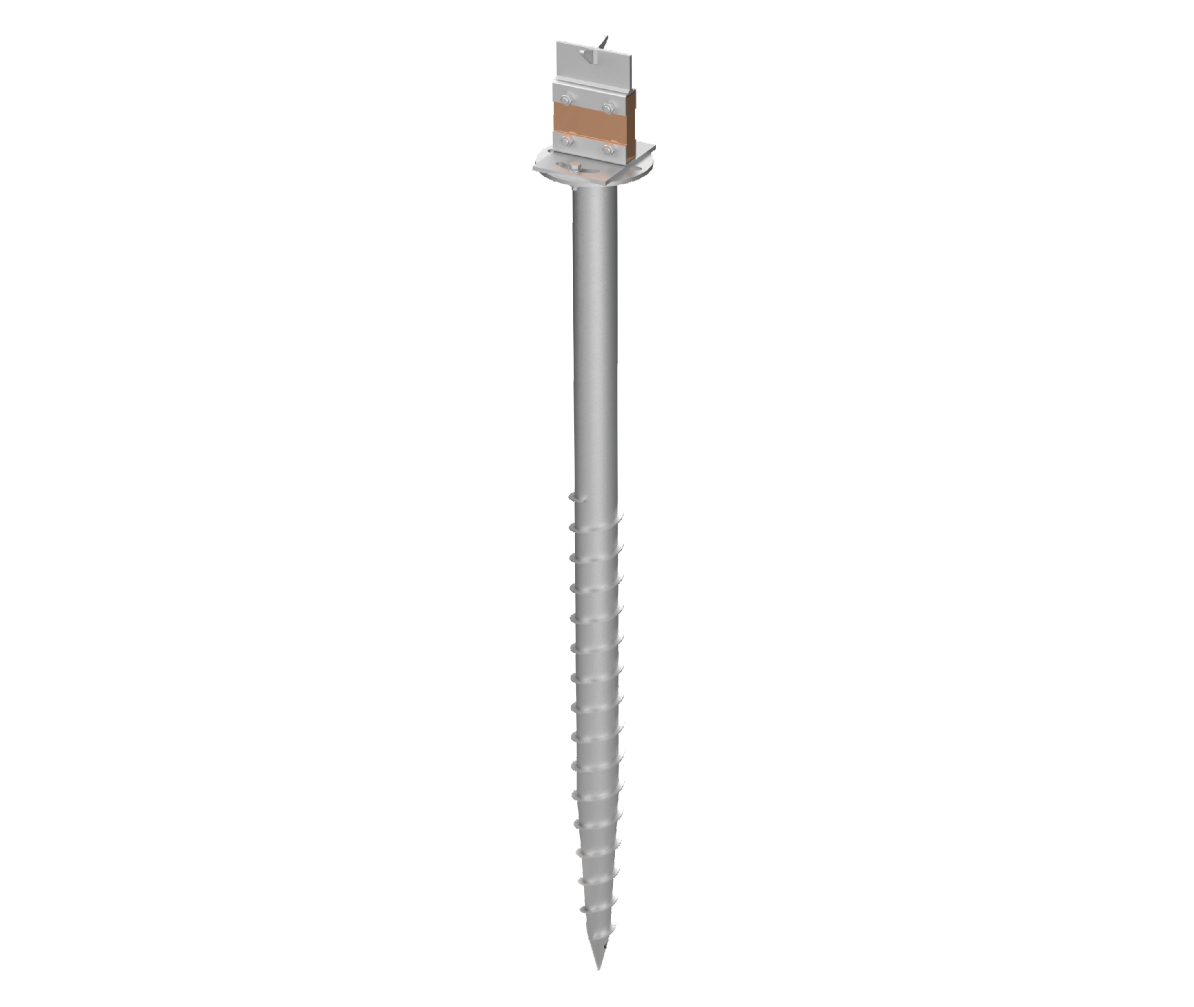

    WBQ OIL PIPELINE GROUND PILES

    Article number: WBQ F76×1600/1800/2000/2500/3000
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanized, average thickness 80 μm

    Details Send Inquiry

    WBQ OIL PIPELINE GROUND PILES

  • Article number

    WBQ F76×1600/1800/2000/2500/3000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Length

    1600/1800/2000/2500/3000 mm

  • Pipe outer diameter

    76 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ OIL PIPELINE GROUND PILES
    Details Send Inquiry

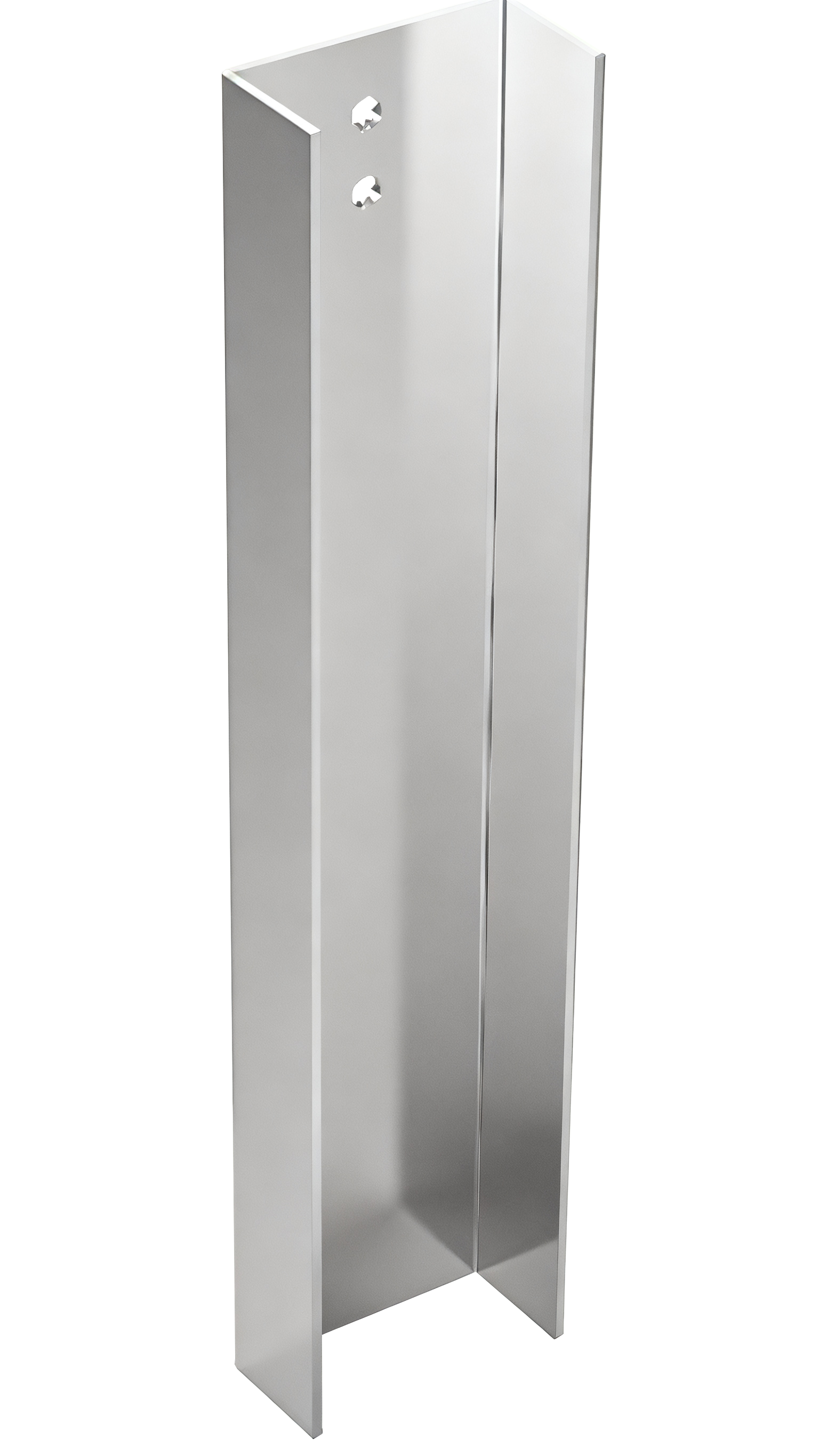

    WBQ C-CHANNEL STEEL PILES

    Article number: WBQ C80-300×1600/1800/2000/2500/3000
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanized, average thickness 80 μm

    Details Send Inquiry

    WBQ C-CHANNEL STEEL PILES

  • Article number

    WBQ C80-300×1600/1800/2000/2500/3000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Thickness

    2-6 mm

  • Length

    1600/1800/2000/2500/3000 mm

    • WBQ C-CHANNEL STEEL PILES
    Details Send Inquiry

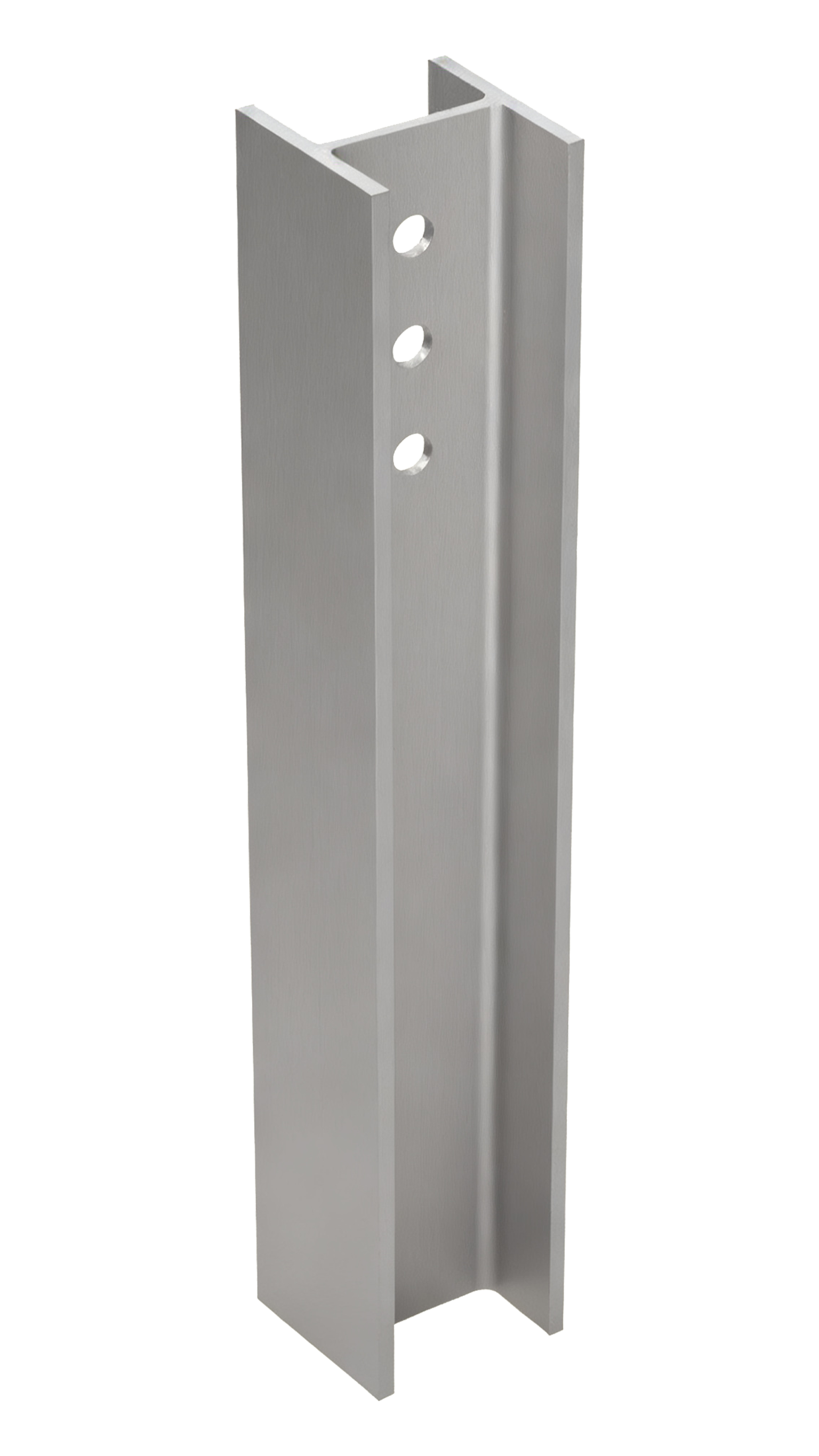

    WBQ I-BEAM STEEL GROUND PILES

    Article number: WBQ HW wide flange type/HM medium flange type/HV narrow flange type/HT thin flange type
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanized, average thickness 80 μm

    Details Send Inquiry

    WBQ I-BEAM STEEL GROUND PILES

  • Article number

    WBQ HW wide flange type/HM medium flange type/HV narrow flange type/HT thin flange type

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Length

    1600/1800/2000/3000/4000 mm

    • WBQ I-BEAM STEEL GROUND PILES
    Details Send Inquiry

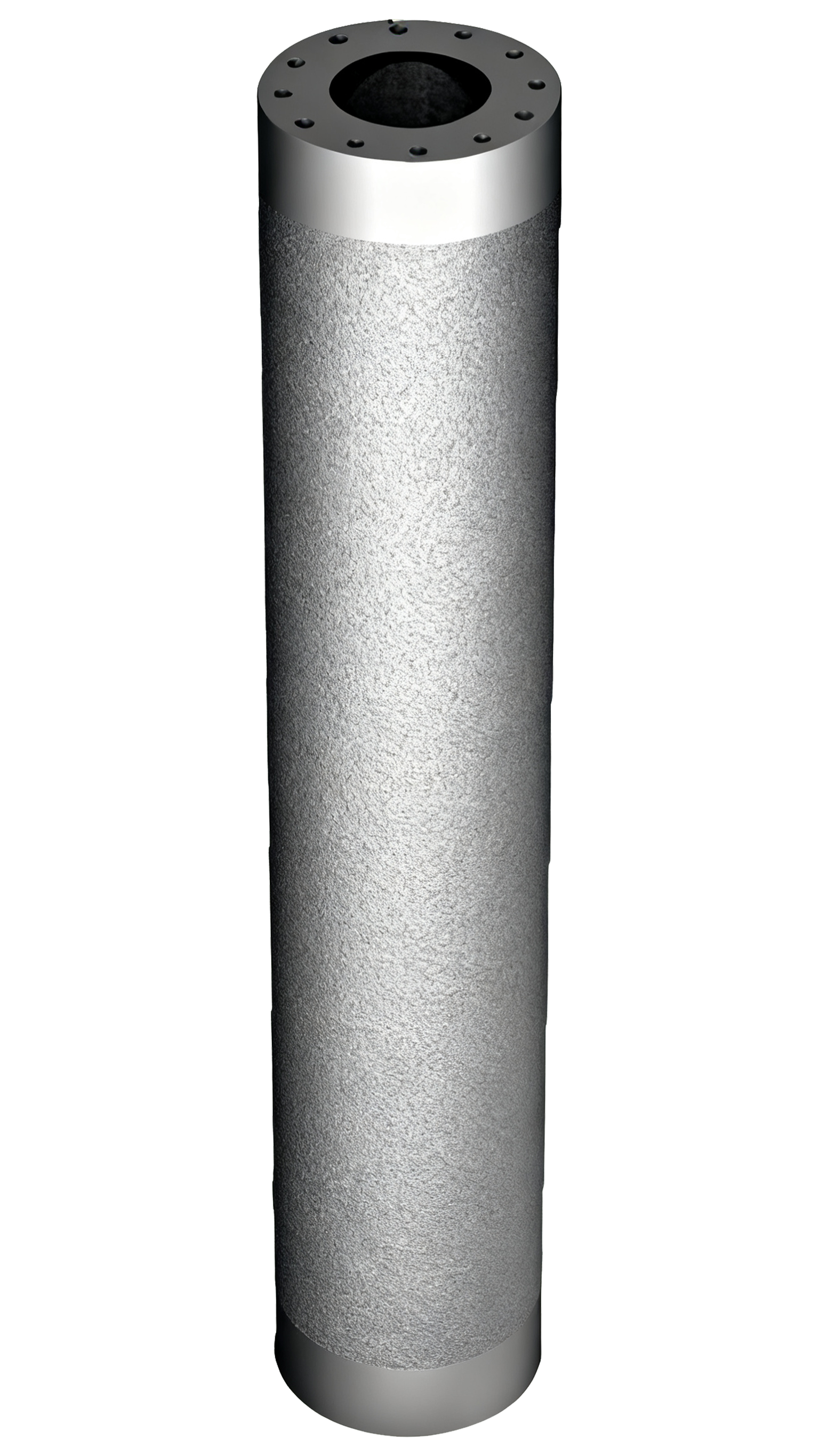

    WBQ PHC PIPE PILES

    Article number: WBQ 300/400/500/600/700/800/1000×A/AB/B/C × wall thickness×3-12 m
    Material: Prestressed high-strength concrete
    Concrete effective pre compression stress value: Type A, AB, B, C

    Details Send Inquiry

    WBQ PHC PIPE PILES

  • Article number

    WBQ 300/400/500/600/700/800/1000×A/AB/B/C × wall thickness×3-12 m

  • Material

    Prestressed high-strength concrete

  • Concrete effective pre compression stress value

    Type A, AB, B, C

  • Concrete strength

    ≥ C80

  • Outer diameter

    500-1000 mm

  • Wall thickness

    70-130 mm

    • WBQ PHC PIPE PILES
    Details Send Inquiry

    application scenario

    Wooden House and Light Steel Structure

    Wooden House and Light Steel Structure

     PV Power Station

    PV Power Station

     Fencing

    Fencing

     Greenhouse

    Greenhouse

     Deck

    Deck

     Advertising and Traffic Signpost

    Advertising and Traffic Signpost

     Garden and Sports

    Garden and Sports

     Petroleum Pipeline

    Petroleum Pipeline

    Tailored Foundations for Complex Site Conditions

    WBQ Irregular Series delivers project-specific solutions where standard ground screws are not sufficient, ensuring reliability across demanding engineering environments.

    All Ground Screw Series

    Tailored Foundations for Complex Site Conditions

    WBQ F Series

    Length: 1,300 – 4,000 mm

    Diameter: 76 – 219 mm

    Thickness: 3 – 14 mm

    Details Send Inquiry

    WBQ N Series

    Length: 550 – 2,000 mm

    Diameter: 60 – 114 mm

    Thickness: 2 – 4 mm

    Details Send Inquiry

    WBQ D Series

    Length: 1,200 – 2,015 mm

    Diameter: 60 – 76 mm

    Thickness: 3 – 4 mm

    Details Send Inquiry

    WBQ U Series

    Length: 550 – 865 mm

    Diameter: 68 – 76 mm

    Details Send Inquiry
