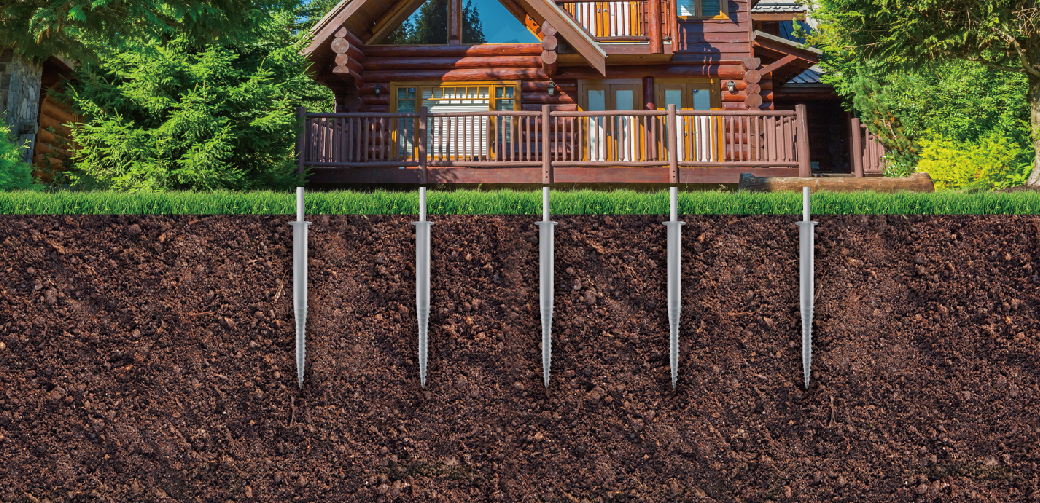

WBQ Flange Series<br /> Adjustable Screw Piles

WBQ Flange Series
Adjustable Screw Piles

Precision Flange Connection for Solar,
Timber & Fencing Systems
25-Year Design Life

WBQ Flange Series Screw Piles

WBQ Flange Series screw piles are engineered for precise and adaptable structural connections.
Multiple flange configurations allow accurate positioning in all directions, making installation easier on uneven or complex terrain.

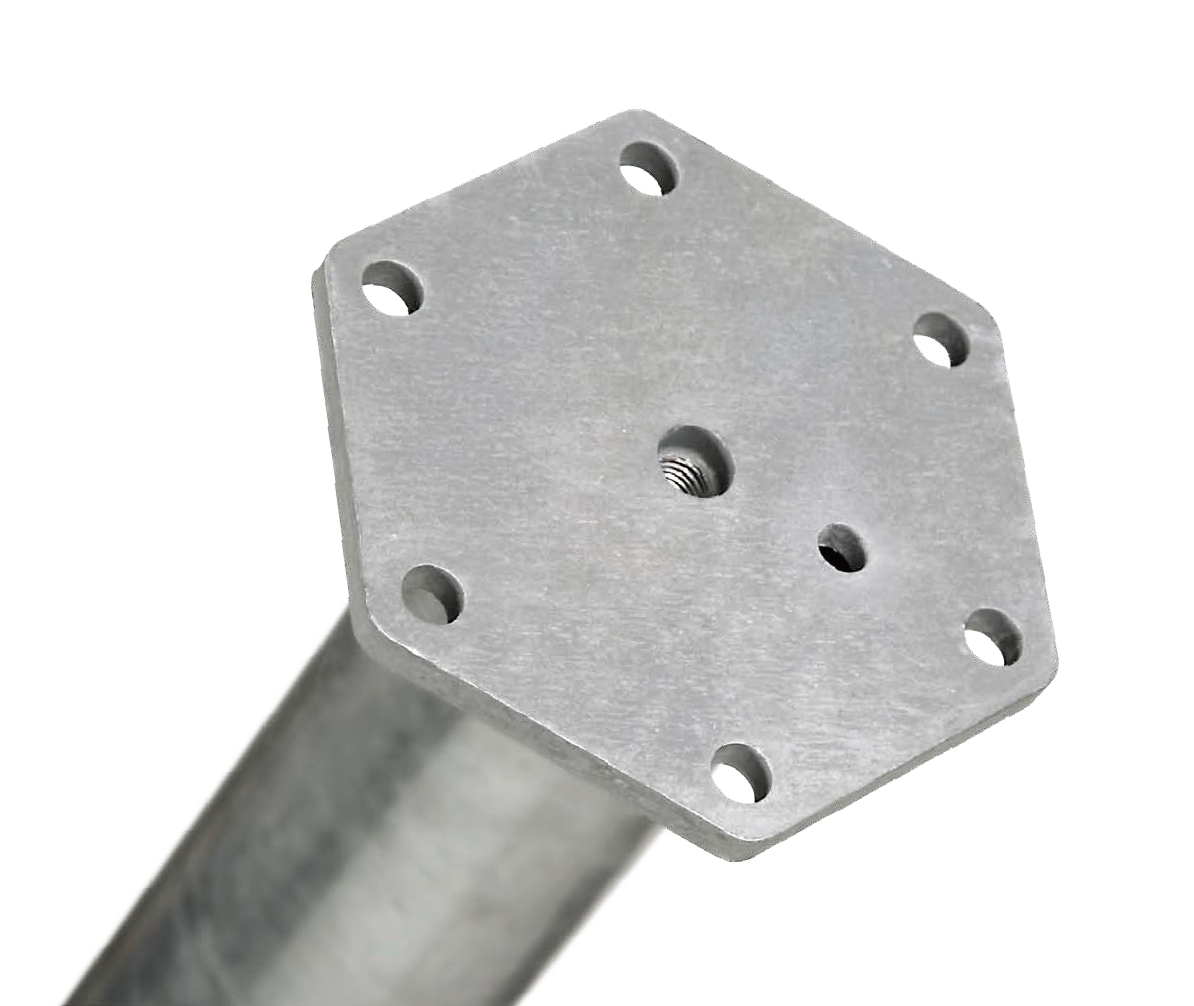

The bolted flange design enables secure connections with efficient on-site assembly and disassembly, making this series well suited for solar mounting systems, timber structures, fencing, greenhouses, and modular construction.

Explore WBQ Ground Screw Solutions

Product Sheet Send Inquiry

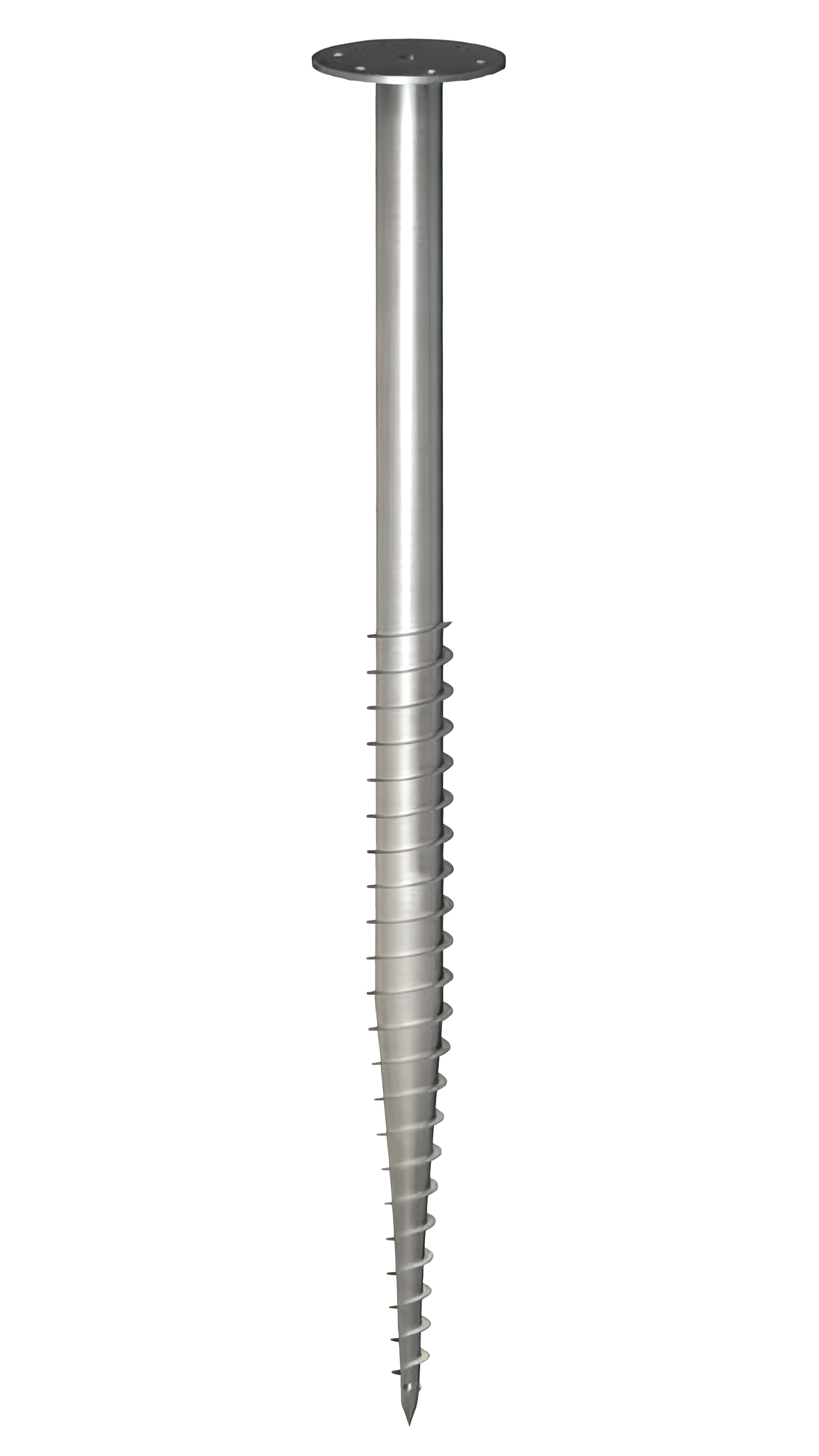

WBQ F76×1200/1600/1800/2000

Article number: WBQ F76×1200/1600/1800/2000
Material: Q235B/Q355B
Surface treatment: Hot dip galvanizing with an average of over 80 μm

Details Send Inquiry

WBQ F76×1200/1600/1800/2000

  • Article number

    WBQ F76×1200/1600/1800/2000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanizing with an average of over 80 μm

  • Length

    1200/1600/1800/2000 mm

  • Pipe outer diameter

    76 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ F76×1200/1600/1800/2000
    Details Send Inquiry

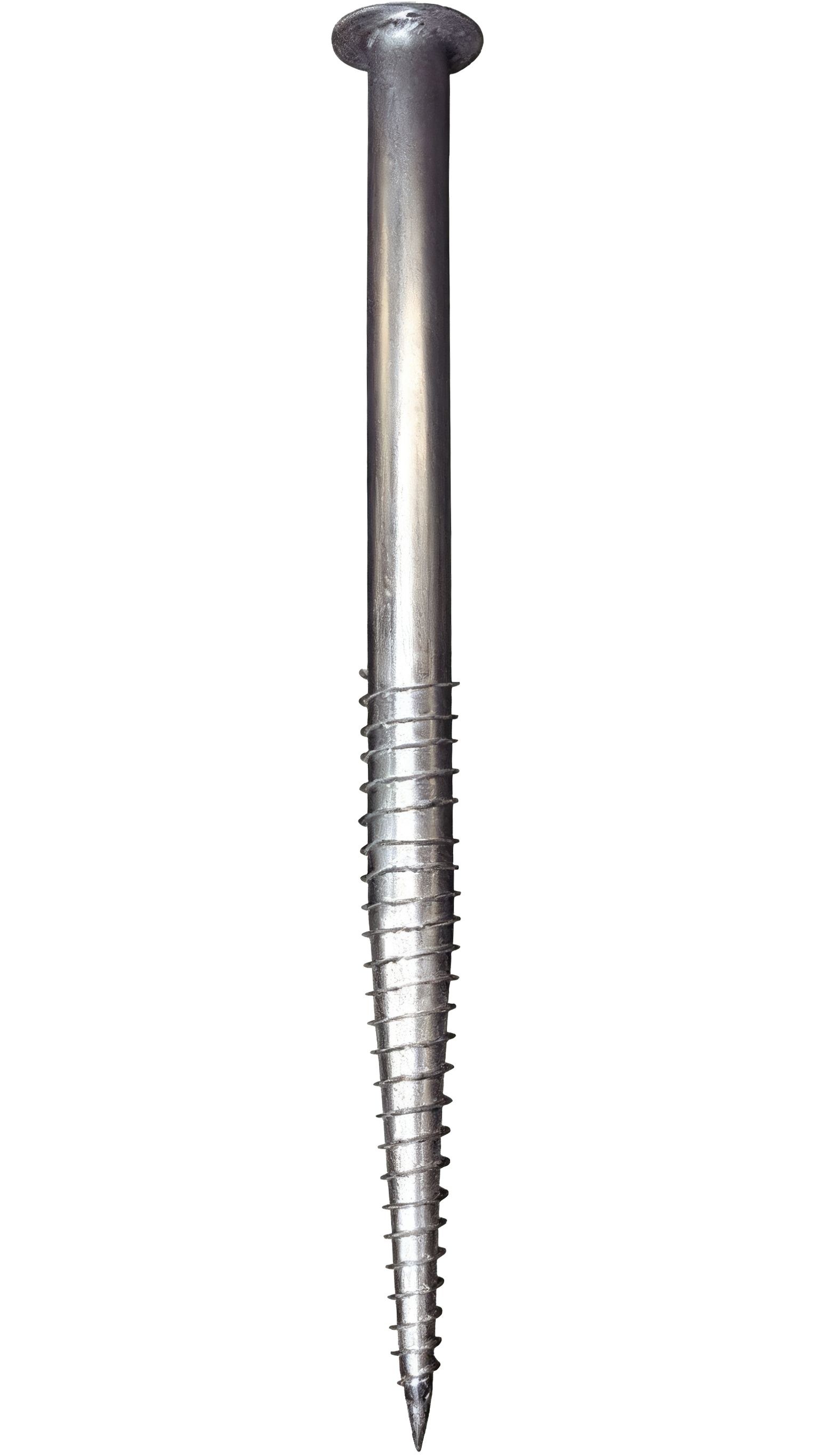

    WBQ F89×1200/1600/1800/2000

    Article number: WBQ F89×1200/1600/1800/2000
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanizing with an average of over 80 μm

    Details Send Inquiry

    WBQ F89×1200/1600/1800/2000

  • Article number

    WBQ F89×1200/1600/1800/2000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanizing with an average of over 80 μm

  • Length

    1200/1600/1800/2000 mm

  • Pipe outer diameter

    89 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ F89×1200/1600/1800/2000
    Details Send Inquiry

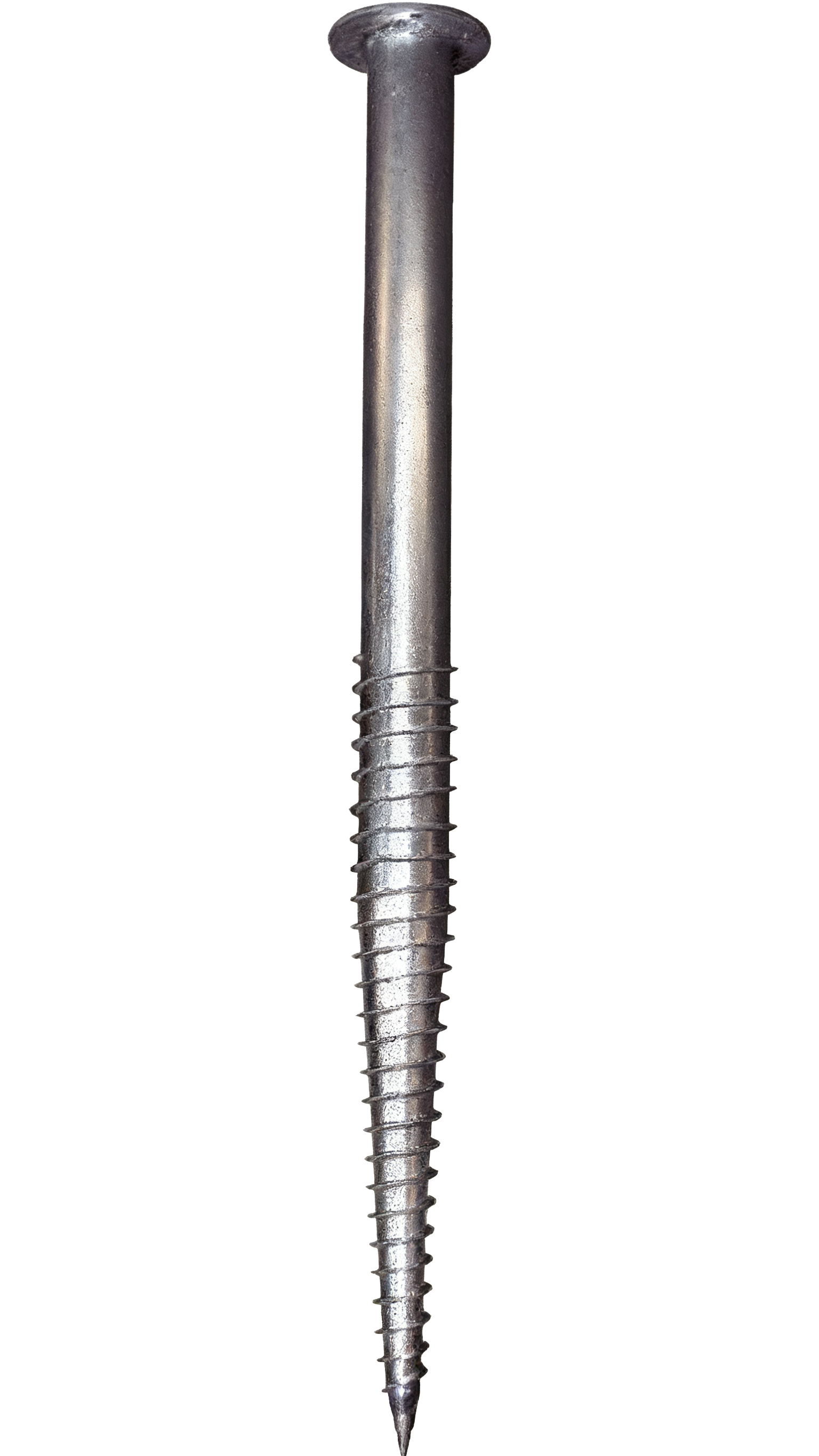

    WBQ F114×1600/1800/2000/3000

    Article number: WBQ F114×1600/1800/2000/3000
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanizing with an average of over 80 μm

    Details Send Inquiry

    WBQ F114×1600/1800/2000/3000

  • Article number

    WBQ F114×1600/1800/2000/3000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanizing with an average of over 80 μm

  • Length

    1600/1800/2000/3000 mm

  • Pipe outer diameter

    114 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ F114×1600/1800/2000/3000
    Details Send Inquiry

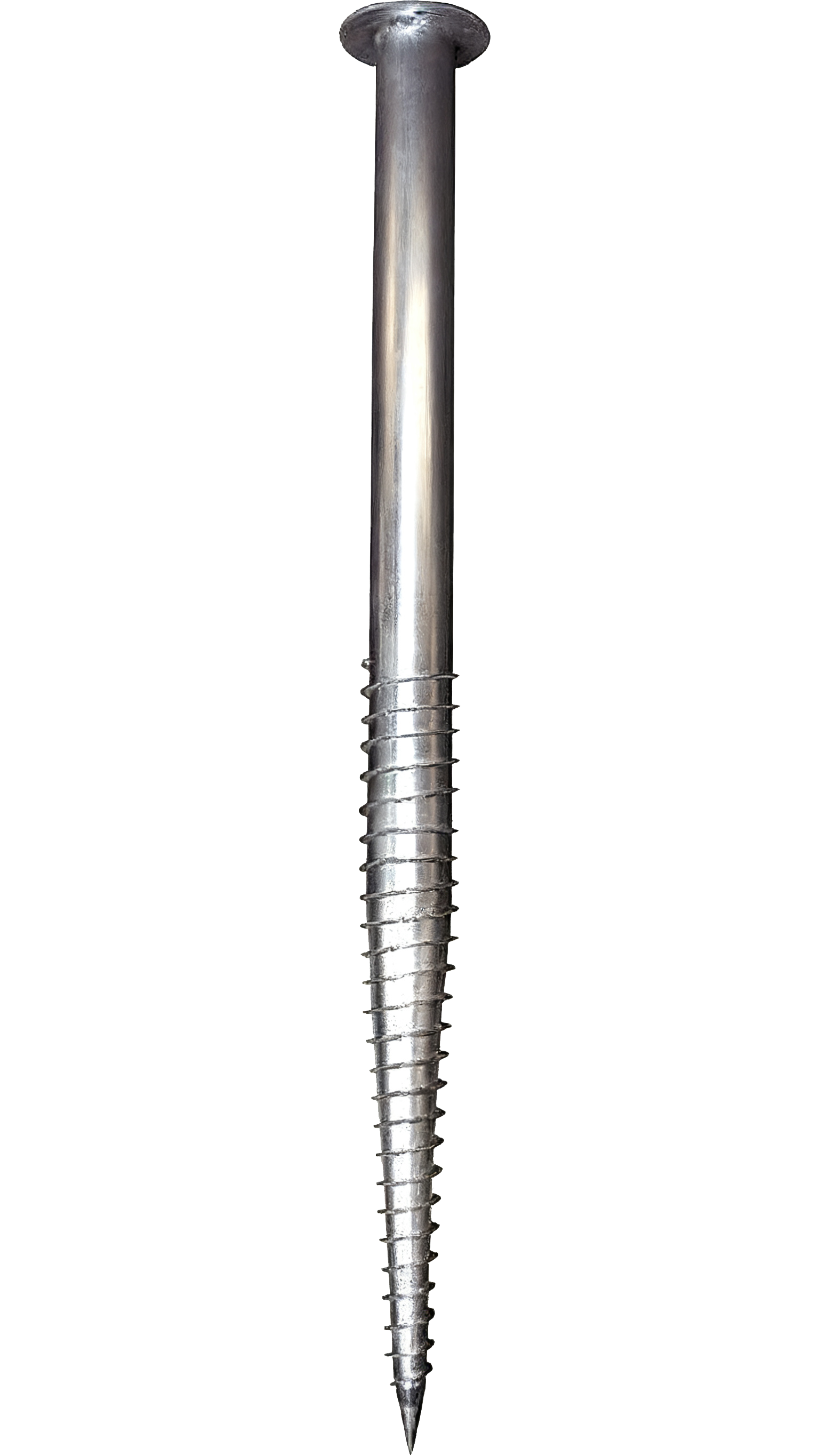

    WBQ F140×1600/1800/2000/3000

    Article number: WBQ F140×1600/1800/2000/3000
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanizing with an average of over 80 μm

    Details Send Inquiry

    WBQ F140×1600/1800/2000/3000

  • Article number

    WBQ F140×1600/1800/2000/3000

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanizing with an average of over 80 μm

  • Length

    1600/1800/2000/3000 mm

  • Pipe outer diameter

    140 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ F140×1600/1800/2000/3000
    Details Send Inquiry

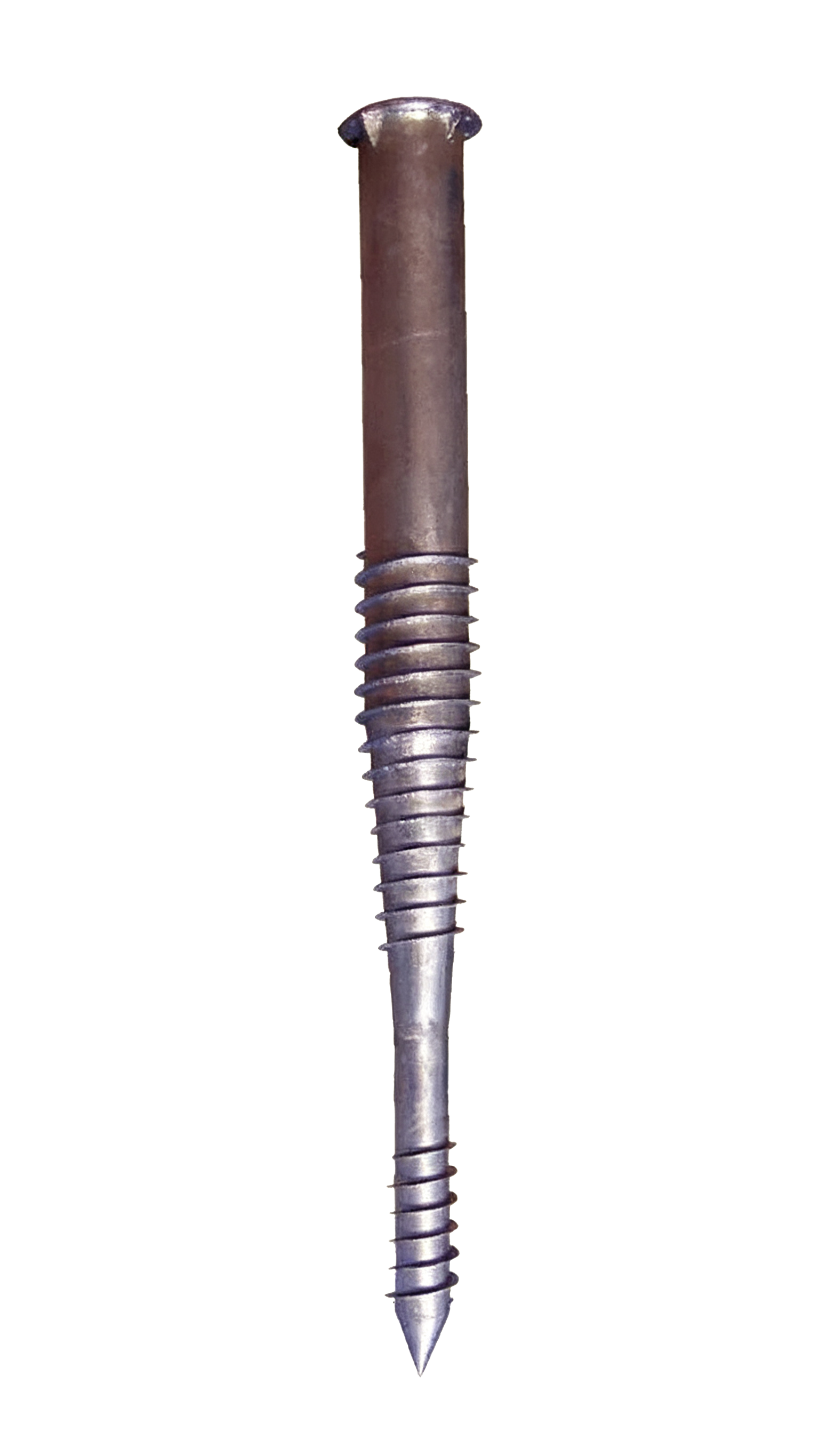

    WBQ F219×3000/3500/4000L

    Article number: WBQ F219×3000/3500/4000L
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanized, average thickness 80 μm

    Details Send Inquiry

    WBQ F219×3000/3500/4000L

  • Article number

    WBQ F219×3000/3500/4000L

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Length

    3000/3500/4000 mm

  • Pipe outer diameter

    219 mm

  • Pipe wall thickness

    6-14 mm

    • WBQ F219×3000/3500/4000L
    Details Send Inquiry

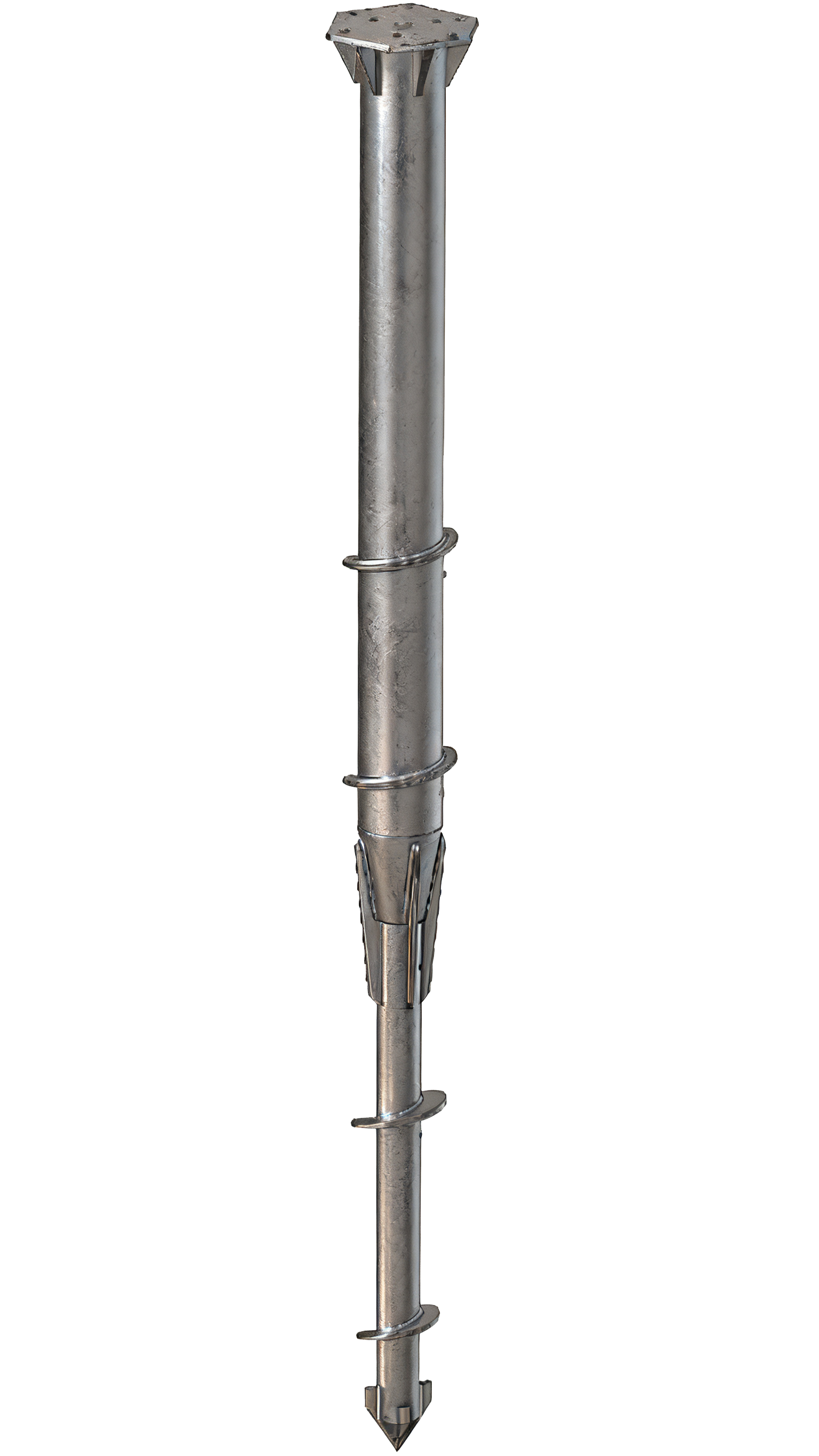

    WBQ F219×3000/3500/4000LT

    Article number: WBQ F219×3000/3500/4000LT
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanized, average thickness 80 μm

    Details Send Inquiry

    WBQ F219×3000/3500/4000LT

  • Article number

    WBQ F219×3000/3500/4000LT

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanized, average thickness 80 μm

  • Length

    3000/3500/4000 mm

  • Pipe outer diameter

    219 mm

  • Pipe wall thickness

    6-14 mm

    • WBQ F219×3000/3500/4000LT
    Details Send Inquiry

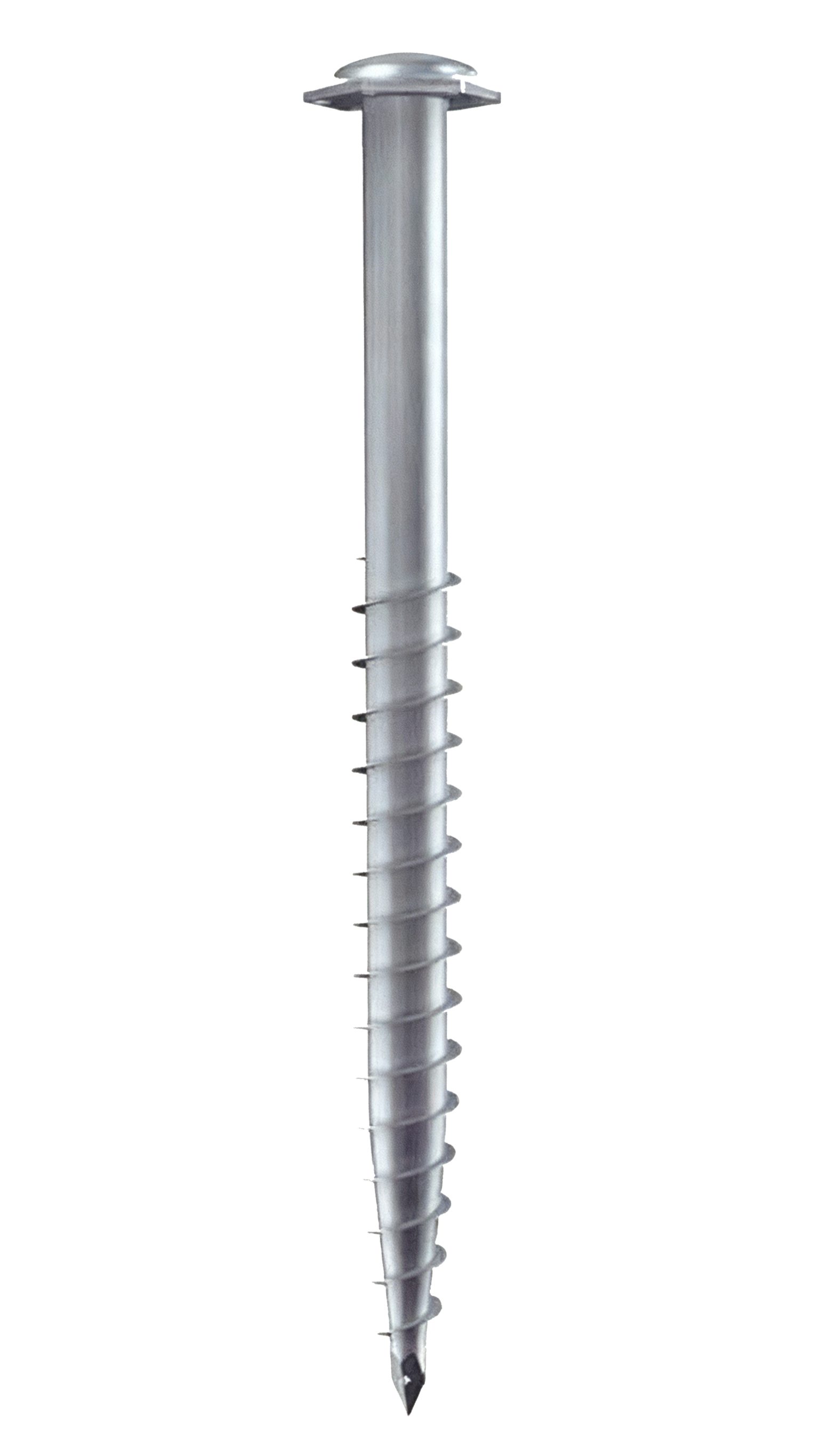

    WBQ FM76×1300/1600/2100-M16

    Article number: WBQ FM76×1300/1600/2100-M16
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanizing with an average of over 80 μm

    Details Send Inquiry

    WBQ FM76×1300/1600/2100-M16

  • Article number

    WBQ FM76×1300/1600/2100-M16

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanizing with an average of over 80 μm

  • Length

    1300/1600/2100 mm

  • Pipe outer diameter

    76 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ FM76×1300/1600/2100-M16
    Details Send Inquiry

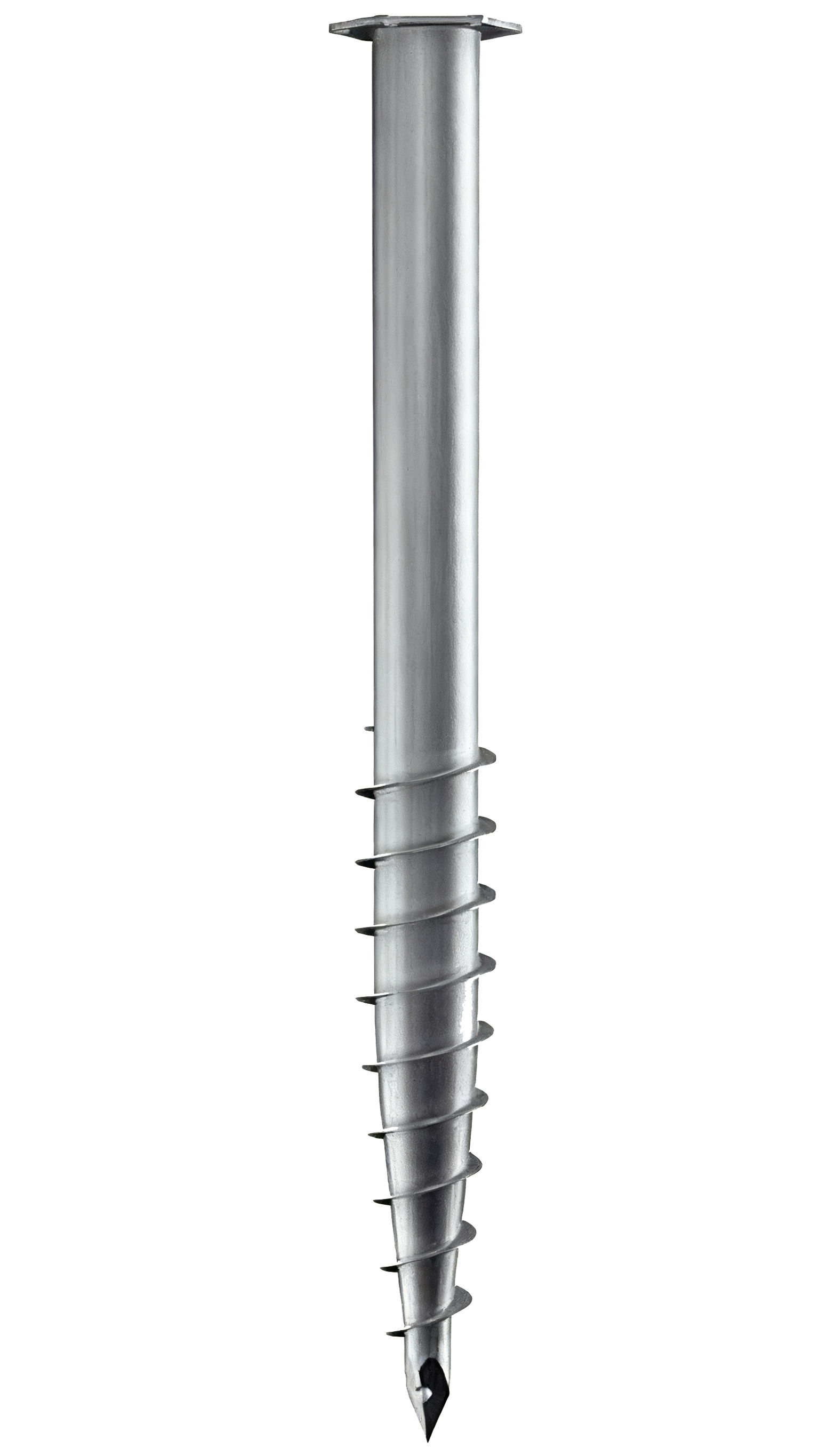

    WBQ FM89×1300/1600/2100-M24

    Article number: WBQ FM89×1300/1600/2100-M24
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanizing with an average of over 80 μm

    Details Send Inquiry

    WBQ FM89×1300/1600/2100-M24

  • Article number

    WBQ FM89×1300/1600/2100-M24

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanizing with an average of over 80 μm

  • Length

    1300/1600/2100 mm

  • Pipe outer diameter

    89 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ FM89×1300/1600/2100-M24
    Details Send Inquiry

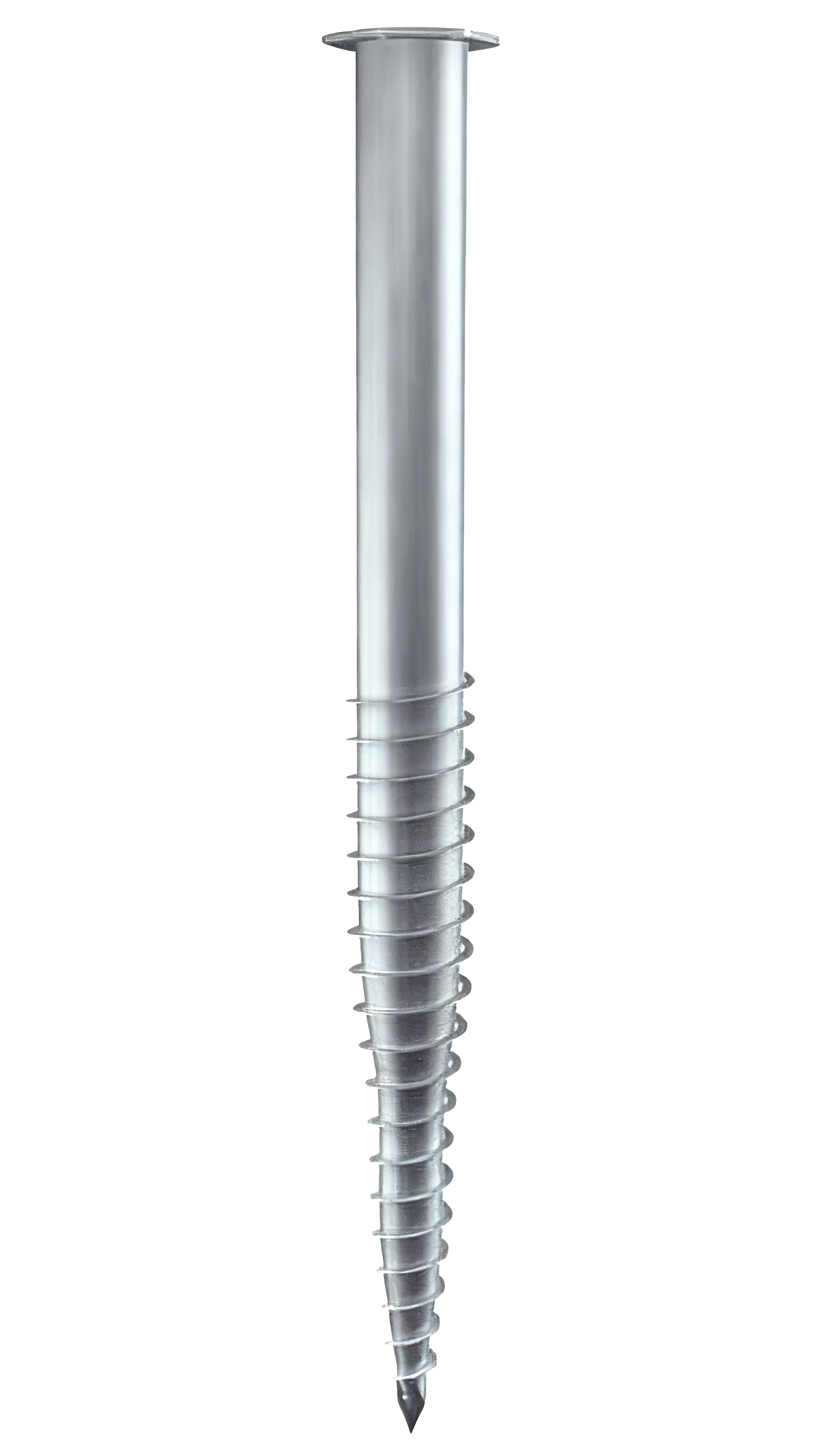

    WBQ FM114×1300/1600/2100-M24

    Article number: WBQ FM114×1300/1600/2100-M24
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanizing with an average of over 80 μm

    Details Send Inquiry

    WBQ FM114×1300/1600/2100-M24

  • Article number

    WBQ FM114×1300/1600/2100-M24

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanizing with an average of over 80 μm

  • Length

    1300/1600/2100 mm

  • Pipe outer diameter

    114 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ FM114×1300/1600/2100-M24
    Details Send Inquiry

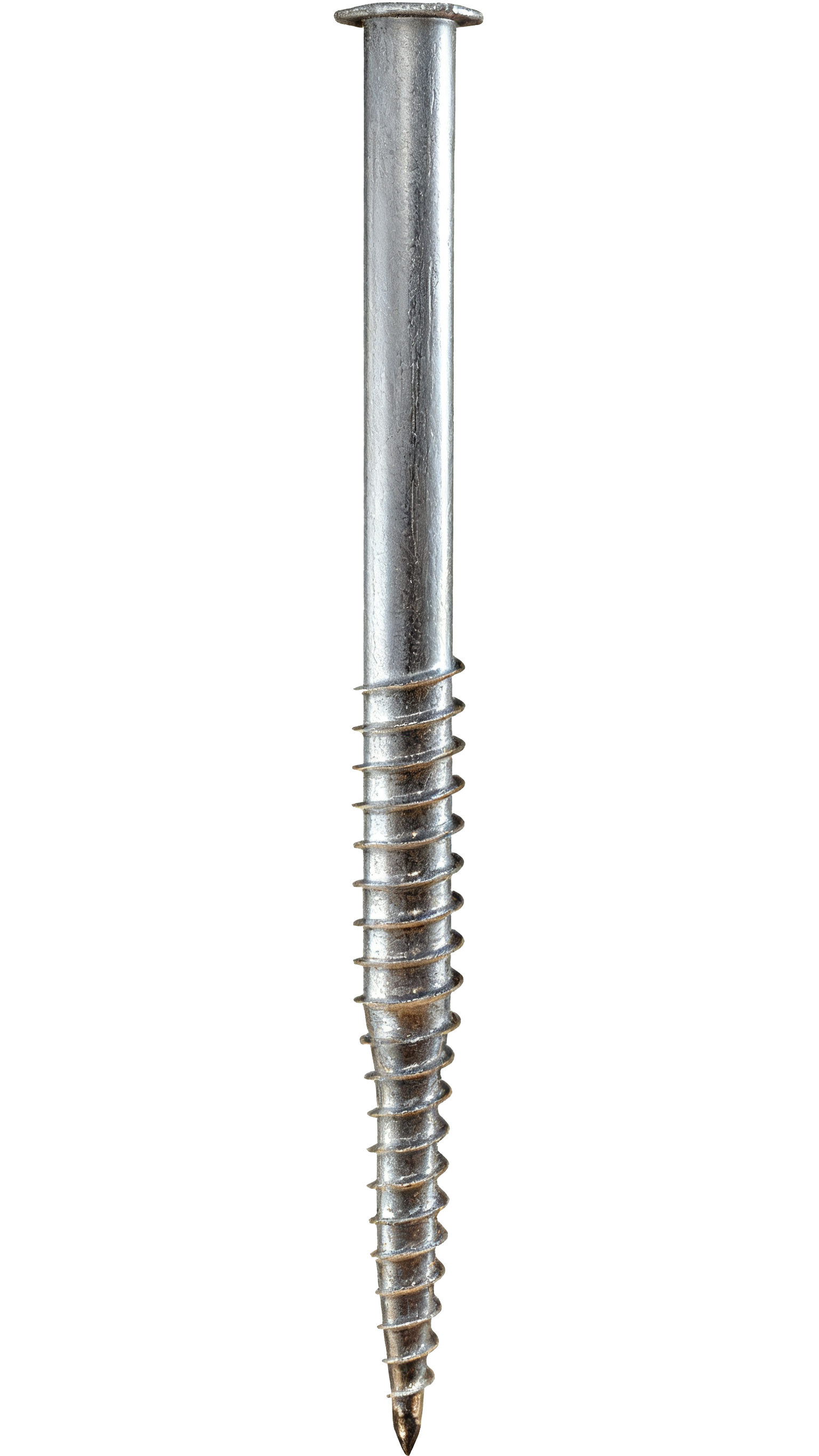

    WBQ FM140×1300/1600/2100-M16

    Article number: WBQ FM140×1300/1600/2100-M16
    Material: Q235B/Q355B
    Surface treatment: Hot dip galvanizing with an average of over 80 μm

    Details Send Inquiry

    WBQ FM140×1300/1600/2100-M16

  • Article number

    WBQ FM140×1300/1600/2100-M16

  • Material

    Q235B/Q355B

  • Surface treatment

    Hot dip galvanizing with an average of over 80 μm

  • Length

    1300/1600/2100 mm

  • Pipe outer diameter

    140 mm

  • Pipe wall thickness

    3-4 mm

    • WBQ FM140×1300/1600/2100-M16
    Details Send Inquiry

    WBQ Installation and Adjustment Method for Flange Piles

    01

    01

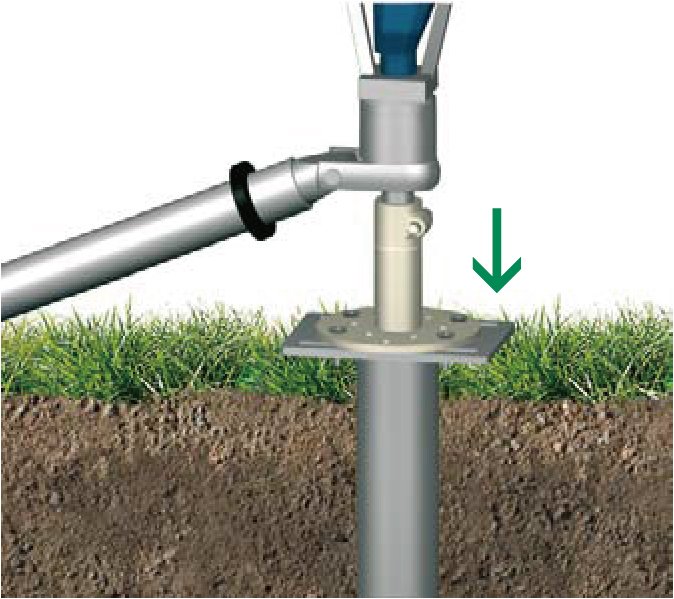

    Use equipment to construct the spiral ground pile to a suitable location and underground depth.
    02

    02

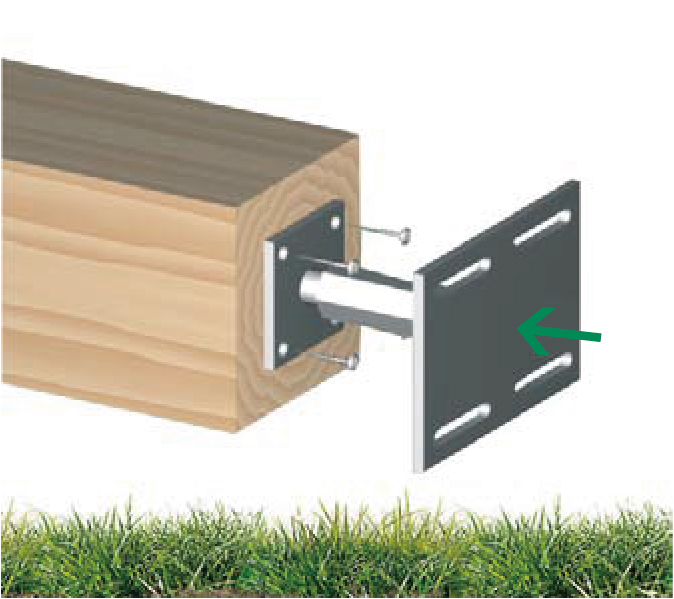

    Connect the connecting piece to the wooden pile with wooden screws.
    03

    03

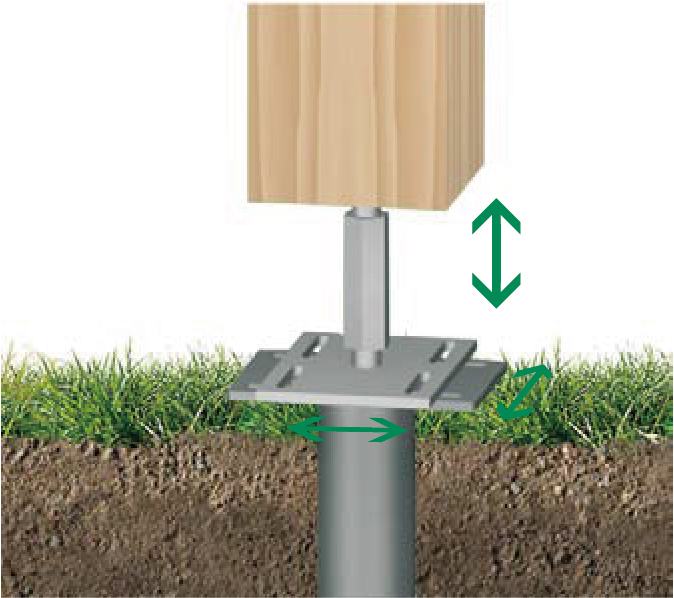

    Adjust the connecting components to move up and down, back and forth, left and right, and adjust to the correct position.
    04

    04

    After adjustment, tighten the locking bolts and nuts.

    application scenario

    Wooden House and Light Steel Structure

    Wooden House and Light Steel Structure

     PV Power Station

    PV Power Station

     Fencing

    Fencing

     Greenhouse

    Greenhouse

     Deck

    Deck

     Advertising and Traffic Signpost

    Advertising and Traffic Signpost

     Garden and Sports

    Garden and Sports

     Petroleum Pipeline

    Petroleum Pipeline
