WBQ F Series

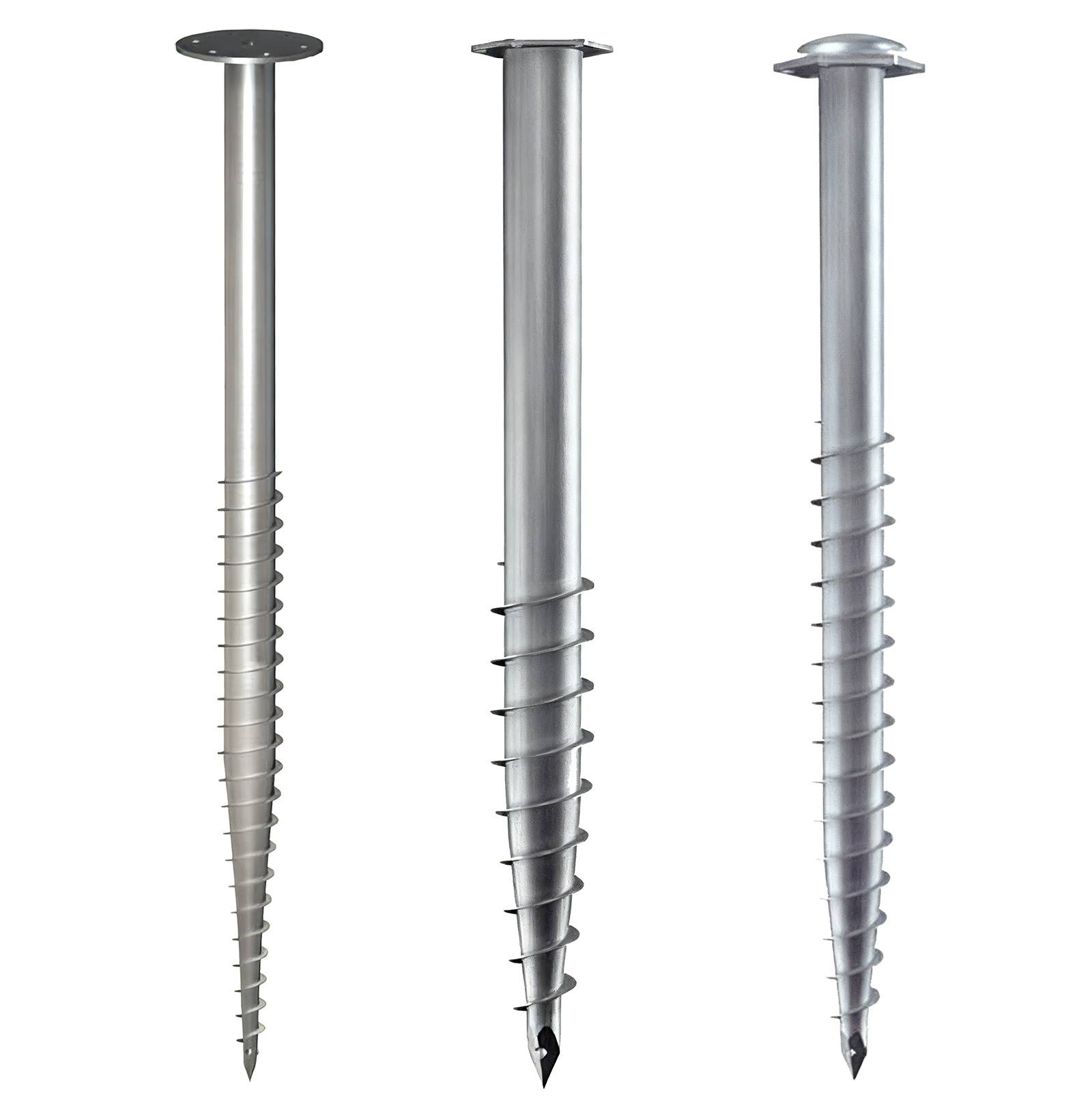

WBQ F219×3000/3500/4000LT
The WBQ F219LT series features an enlarged helix for maximum torque transfer and superior bearing capacity, making it ideal for utility-scale solar and high-load structural foundations.
PARAMETER
 |
Article number | WBQ F219×3000/3500/4000LT |
|
Material | Q235B/Q355B |
|
Surface treatment | Hot dip galvanized, average thickness 80 μm |
|
Length | 3000/3500/4000 mm |
|
Pipe outer diameter | 219 mm |
|
Pipe wall thickness | 6-14 mm |
|
Flange outer diameter | 298-422 mm |
|
Flange thickness | 12-16 mm |
|
Spiral pitch | 70-150 mm |
|
Spiral thickness | 5-10 mm |
|
Spiral width | 50-150 mm |
TECHNICAL REQUIREMENT
| 01 | Hot dip galvanizing with an average thickness of 80μm. Implement standard DIN EN ISO 1461 |
| 02 | The surface should be free of obvious deformation, and welding slag and burrs should be removed |
| 03 | Undeclared tolerance: GB/T 1804-V grade, hole position deviation ±1mm, hole diameter deviation ±1mm |

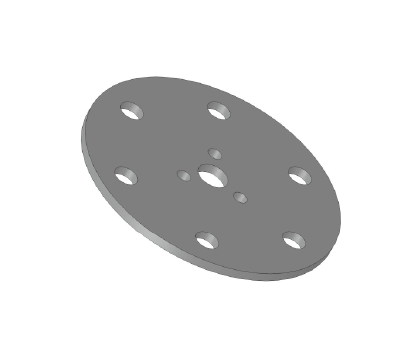

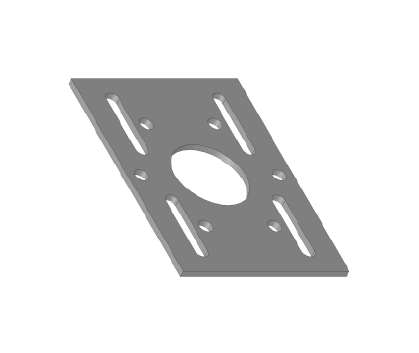

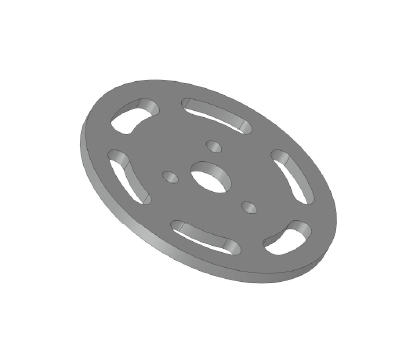

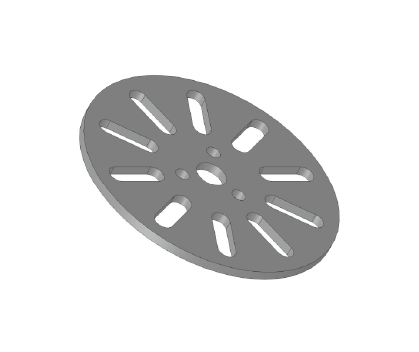

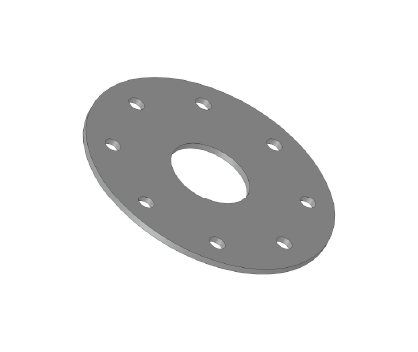

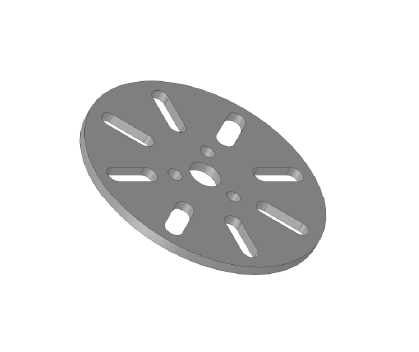

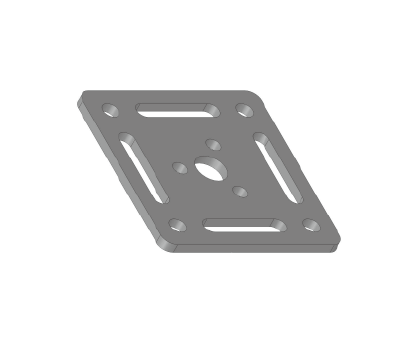

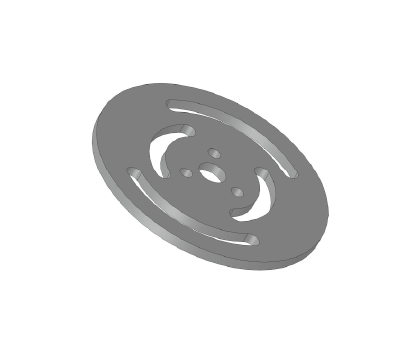

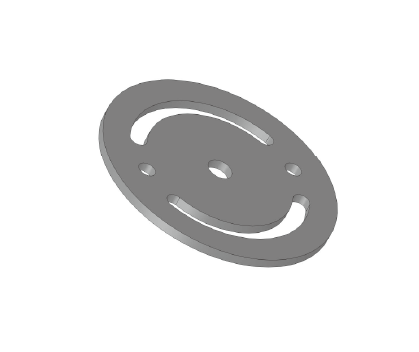

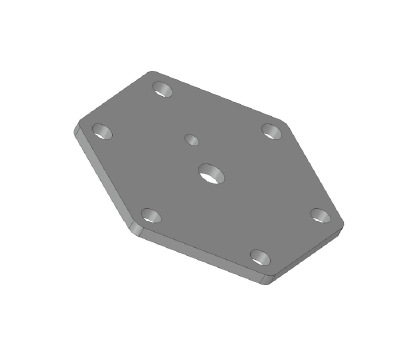

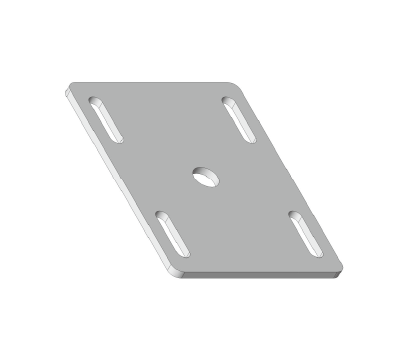

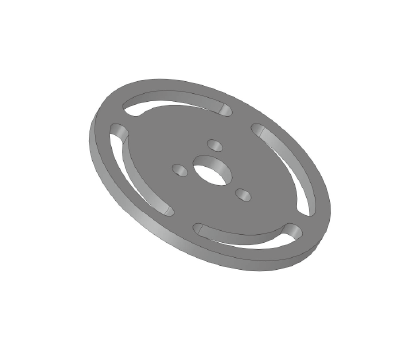

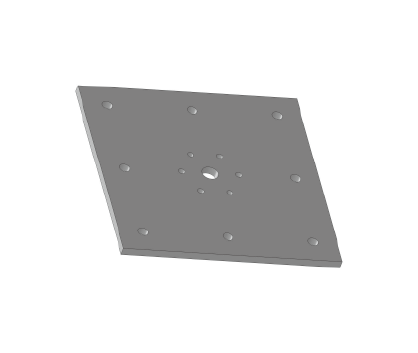

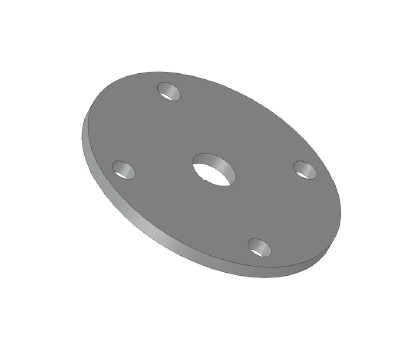

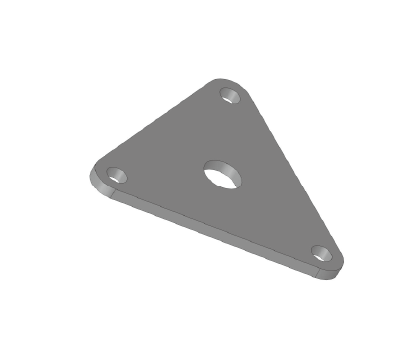

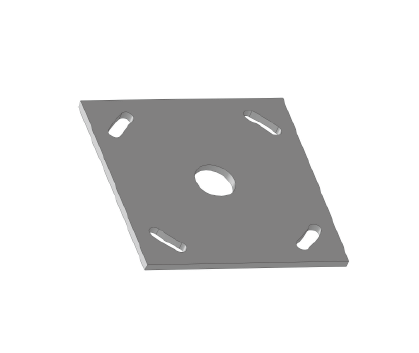

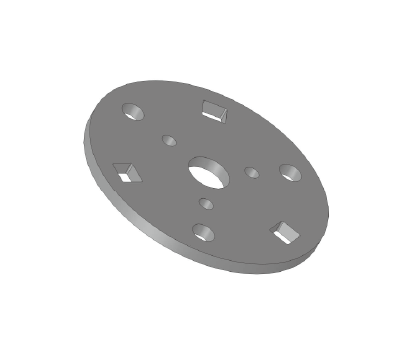

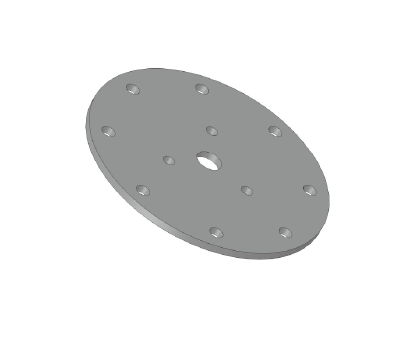

WBQ FLANGE IN STOCK
