WBQ N Series
WBQ N114×1200/1600/1800/2000L
The WBQ N114 ground screw is developed for high-load applica-tions requiring maximum foundation strength. Its oversized diameter enhances vertical and lateral resistance, making it suitable for solar farms, steel structures, and heavy-duty ground anchoring systems.
PARAMETER
 |
Article number | WBQ N114×1200/1600/1800/2000L |
|
Material | Q235B/Q355B |
|
Surface treatment | Hot dip galvanizing with an average of over 80 μm |
|
Length | 1200/1600/1800/200 mm |
|
Pipe outer diameter | 114 mm |
|
Pipe wall thickness | 3-4 mm |
|
Spiral pitch | 40/50/60 mm |
|
Spiral thickness | 2-3 mm |
|
Spiral width | 10-20 mm |
TECHNICAL REQUIREMENT
| 01 | The average thickness of hot dip galvanizing is 80μm, and the execution standard is DIN EN ISO 1461 |
| 02 | The surface should have no obvious deformation and be free of welding slag and burrs |
| 03 | Undeclared tolerance GB/1804-C level, hole position deviation ±1mm, hole diameter difference ±1mm |
Explore WBQ Ground Screw Solutions
application scenario
Why Choose WBQ Ground Screw Foundations
Engineered for high performance and long-lasting durability in solar foundations
Manufacturing Capacity
5 factories with CNC laser/tube cutting, robotic welding, ISO1461 hot-dip galvanizing, automatic assembly, and load/torque testing.
Certifications
ISO 9001/14001/45001, CE EN1090 EXC2/EXC3, Codemark, AWS, CWB, ASTM/AS-NZS/KS compliant, full MTC traceability.
Quality Assurance
Material inspection, WPS/PQR, UT/MT/RT NDT, zinc coating tests, pull-out & torque tests, batch traceability.
Logistics
Worldwide sea freight, steel pallet packaging, loading supervision, bilingual documentation.

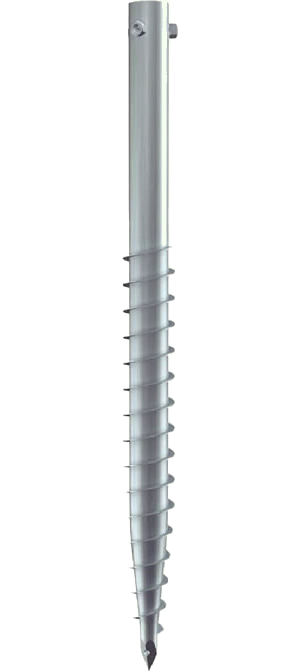

WBQ N Series – Flexible & Easy Install
