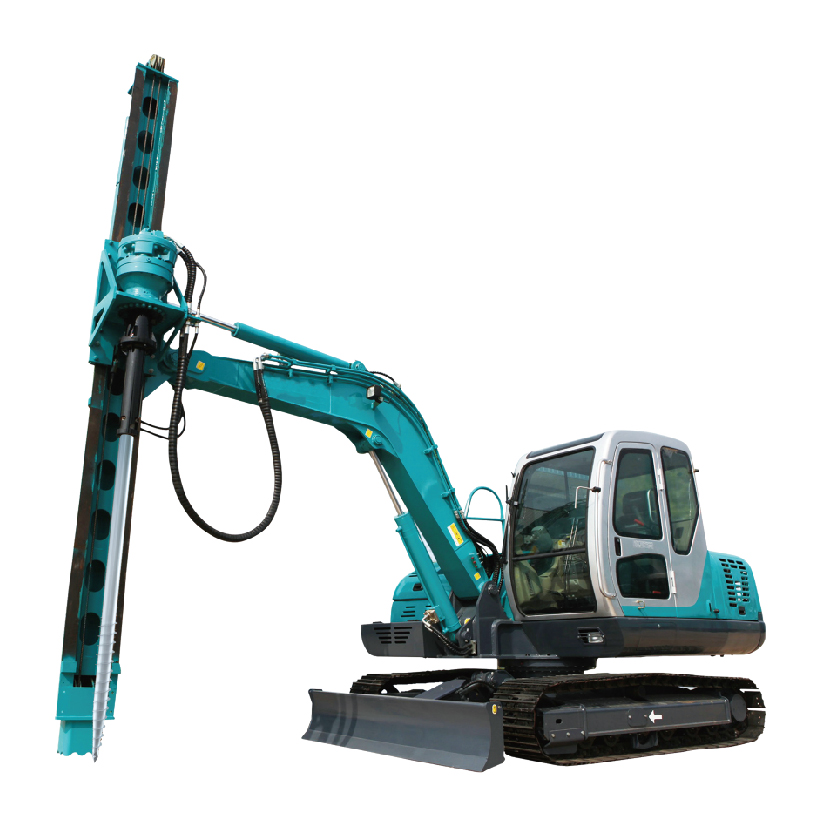

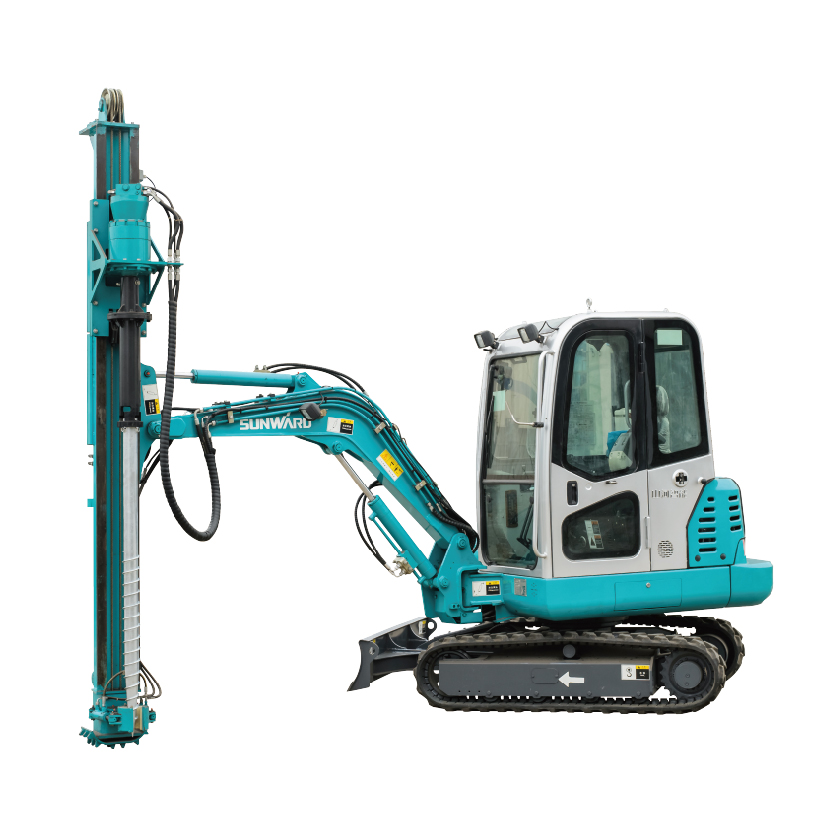

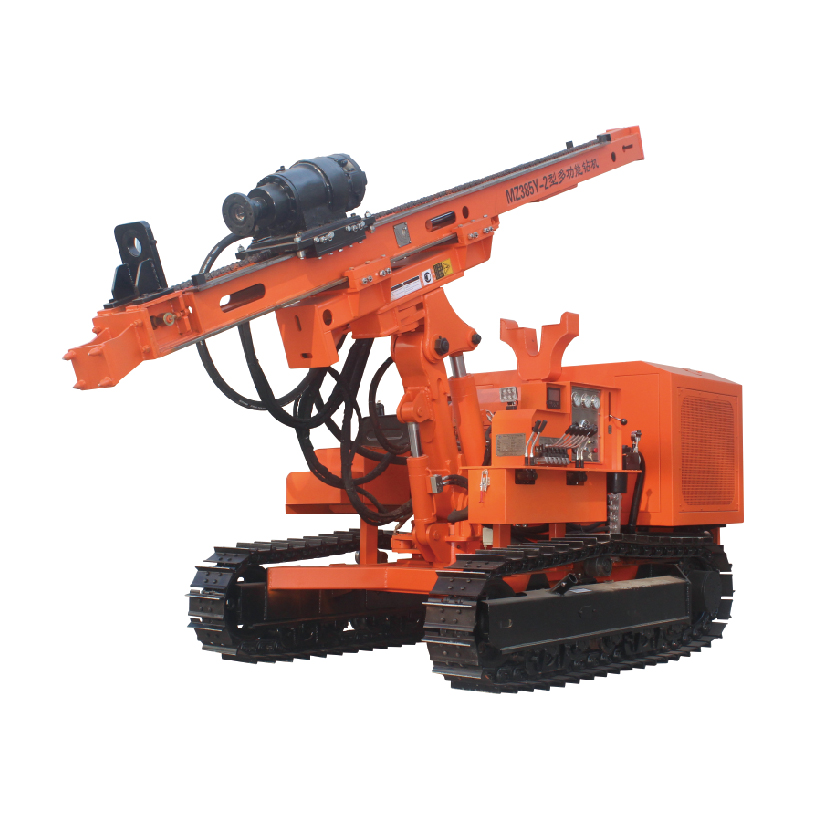

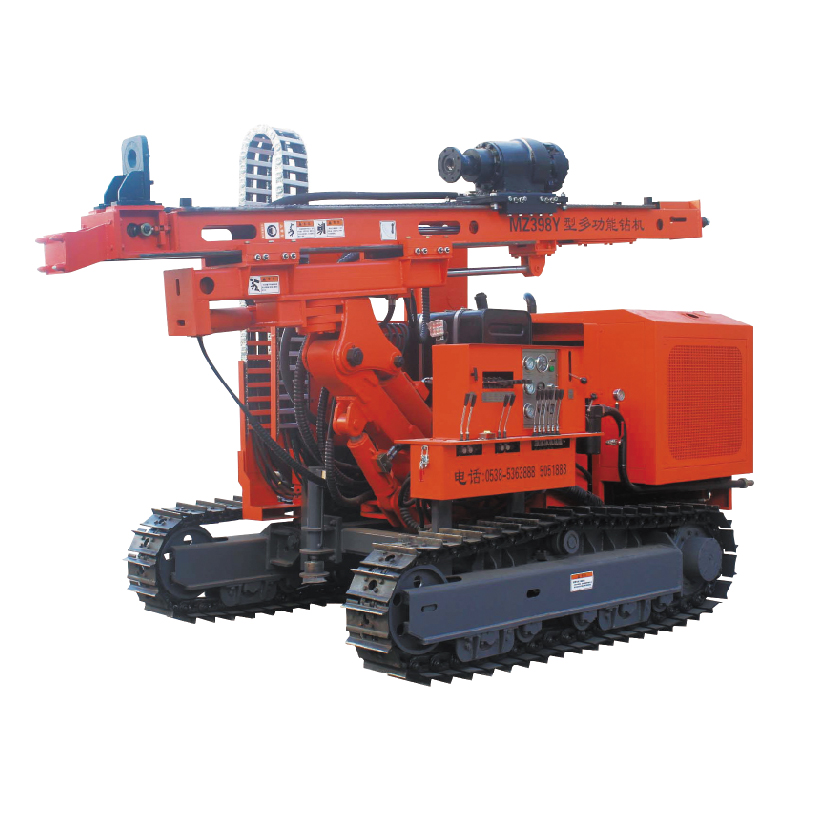

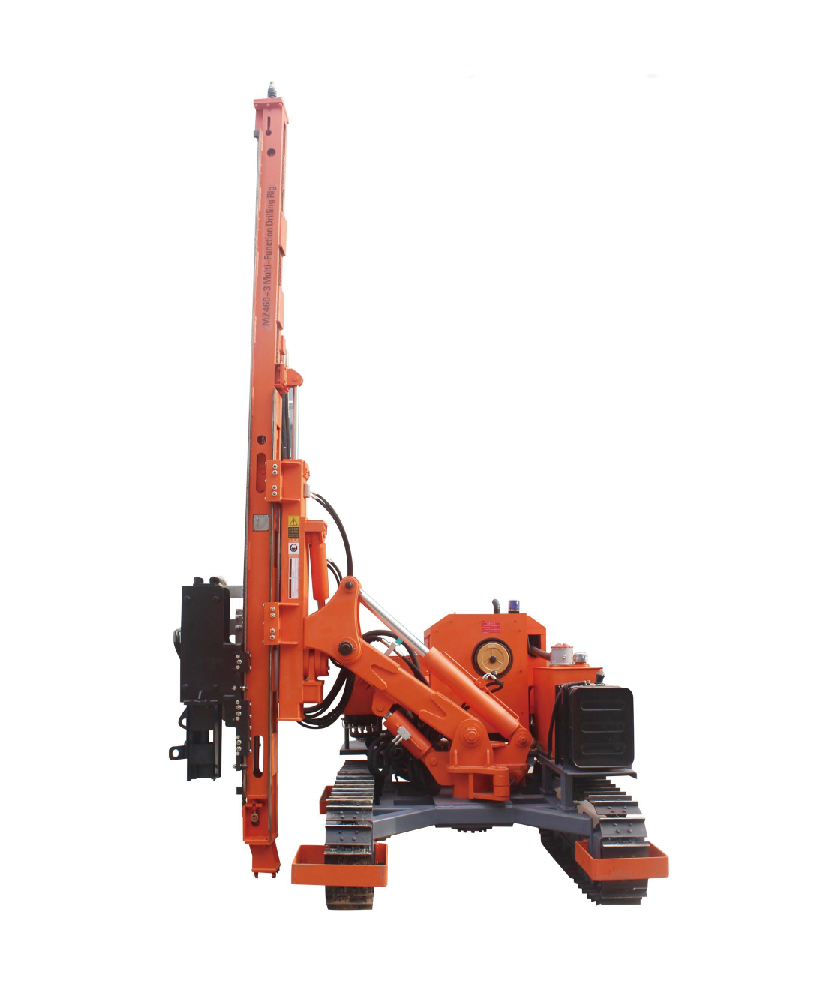

Hydraulic Piling Machine
WBQ heavy-duty pile drivers are engineered for high-efficiency piling in demanding construction environments. Designed to match different soil conditions and pile specifications, they deliver powerful performance while reducing operator workload.
Built on an excavator-based platform, the SWDL series enables multi-functional operation—allowing contractors to complete piling, excavation, and site preparation with a single machine, maximizing jobsite efficiency.
Key Capabilities:
• Multi-Function Operation
Supports rotary pile driving and can be quickly converted for excavation and trenching
• Integrated Site Work
Includes leveling capability, with optional down-the-hole hammer for gravel and rock drilling
• Precision Control
Cab-mounted angle display and pile guide ensure accurate and vertical installation
• Reliable Core System
Powered by YANMAR engine with KYB hydraulic components for stable, long-term operation
• Flexible Mobility
360° rotation and excellent maneuverability for complex job sites
PARAMETER
 |
Drill pile diameter | 76 mm |
|
Drill pile depth | 1800 mm |
|
Track width | 1430 mm |
|
Track gauge | 1150 mm |
|
Track width | 250 mm |
|
Ground clearance | 280 mm |
|
Bulldozer blade length | 1400 mm |
|
Model | YANMAR-3TNV82A |
|
Displacement | 1.331 L |
|
Power/speed | 16 kW/2200 rpm |
|
Fuel tank capacity | 42.5 L |
|
Propulsion beam length | 3400 mm |
|
Propulsion stroke | 2000 mm |
|
Propulsion speed | 2 m/min |
|
Walking speed | 4.7/2.6 km/h |
|
Maximum traction force | 19 kn |
|
Climbing ability (°) | 20 |
|
Rotating speed | 40 rpm |
|
Rotating torque | 3000 N·m |
|
Weight | 3000 kg |
|
Overall dimensions (length×width×height) | 5160X1400x2880 mm |
PARAMETER
|
Drill pile diameter | 76-90 mm |
|
Drill pile depth | 3000 mm |
|
Track width | 2240 mm |
|
Track gauge | 1680 mm |
|
Track width | 400 mm |
|
Ground clearance | 340 mm |
|
Bulldozer blade length | 2080 mm |
|
Model | V3300-DI |
|
Displacement | 3.3 L |
|
Power/speed | 54.9 kw/2600 rpm |
|
Fuel tank capacity | 140 L |
|
Propulsion beam length | 4800 mm |
|
Propulsion stroke | 3500 mm |
|
Propulsion speed | 3 m/min |
|
Walking speed | 4.5/3.1 km/h |
|
Maximum traction force | 55 kn |
|
Climbing ability (°) | 20 |
|
Rotating speed | 40 rpm |
|
Rotating torque | 6000 N·m |
|
Weight | 7800 kg |
|
Overall dimensions (length×width×height) | 8437X2190x3150 mm |
PARAMETER
|
Impact frequency | 450-800 bpm |
|
Impact | 1000 j |
|
Work pressure | 130-150 bar |
|
Once promotion | 4100 mm |
|
Maximum ramming length | 6000 mm |
|
Skid pitch | 95° |
|
Boom swing angle | 110° |
|
Boom pitch | 30° |
|
Swinging angle of skid | left and right total 40° |
|
host power | 84 KW |
|
Climb ability | 35° |
|
Dimension(L×W×H) | 6240x2250x3000 mm |
|
Weight | 7350 kg |
|
Walk speed | 0-2.5 km/h |
PARAMETER
|
Bore diameter (DTH) | 90-400 mm |
|
Bore depth | 0-100 m |
|
Bore depth | 10-26 m³/min |
|
Air pressure | 0.7-1.6 (medium) 1.6-2.46 (high) mpa |
|
Pipe diameter | 76/89/102 mm |
|
For rock | 6-20 F |
|
Bore diameter(screw) | maximum 400 mm |
|
Bore depth | 0-30 m |
|
Screw pipe diameter | 130-400 mm |
|
Once promotion | 2600 mm |
|
Skid pitch | 120° |
|
Swinging angle of skid | left and right total 40° |
|
Boom swing angle | left and right total 45° |
|
Rotation Speed | 0-110 r/min |
|
Climb ability | 45° |
|
Dimension(L×W×H) | 4730x2110x2850 mm |
|
Weight | 7300 kg |
|
Walk speed | 0-2.5 km/h |
PARAMETER
|
Bore diameter (DTH) | 90-300 mm |
|
Bore depth | 0-100 m |
|
Bore depth | 10-26 m³/min |
|
Air pressure | 0.7-1.6 (medium) 1.6-2.46 (high) mpa |
|
Pipe diameter | 76/89 mm |
|
For rock | 6-20 F |
|
Bore diameter(screw) | maximum 400 mm |
|
Bore depth | 0-30 m |
|
Screw pipe diameter | 130-400 mm |
|
Once promotion | 2000 mm |
|
Skid pitch | 100° |
|
Swinging angle of skid | left and right total 40° |
|
Rotation Speed | 0-70 r/min |
|
Host Power | 56 Kw |
|
Climb ability | 35° |
|
Dimension(L×W×H) | 4700x1950x2500 mm |
|
Weight | 4710 kg |
|
Walk speed | 0-2.5 km/h |
PARAMETER
|
Bore diameter (DTH) | 90-400 mm |
|
Bore depth | 0-100 m |
|
Bore depth | 10-26 m³/min |
|
Air pressure | 0.7-1.6 (medium) 1.6-2.46 (high) mpa |
|
Pipe diameter | 76/89/102 mm |
|
For rock | 6-20 F |
|
Bore diameter(screw) | 400 mm |
|
Bore depth | 0-30 m |
|
Screw pipe diameter | 130-400 mm |
|
Once promotion | 3200 mm |
|
Skid pitch | 120° |
|
Swinging angle of skid | left and right total 40° |
|
Boom swing angle | left and right total 45° |
|
Rotation Speed | 0-110 r/min |
|
Host Power | 84 Kw |
|
Dimension(L×W×H) | 4730x2110x2850 mm |
|
Climb ability | 35° |
|
Dimension(L×W×H) | 5300x1970x2635 mm |
|
Weight | 5900 kg |
|
Walk speed | 0-2.5 km/h |

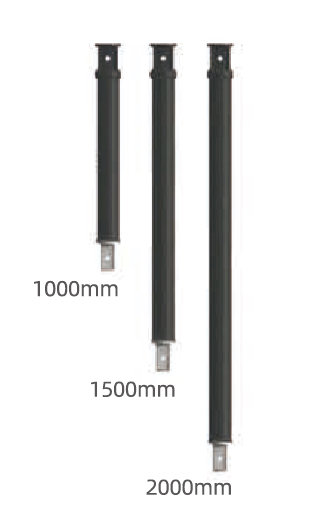

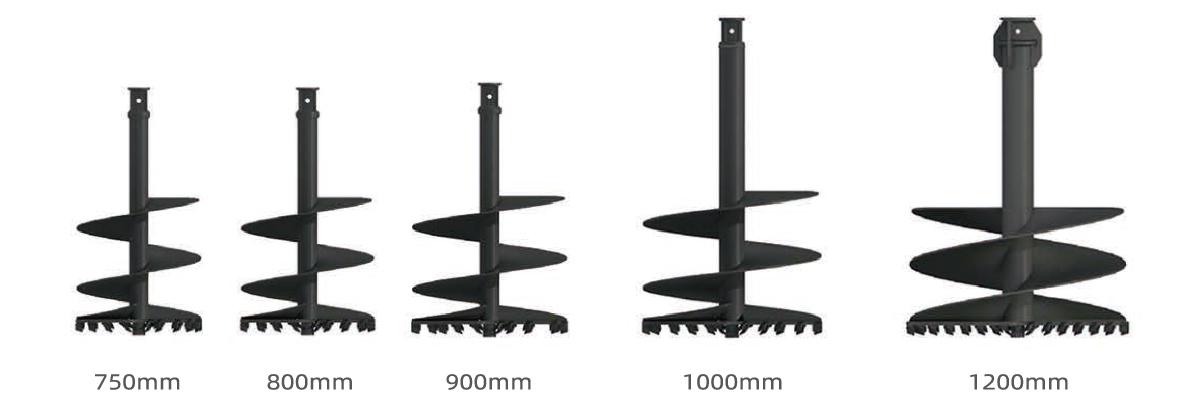

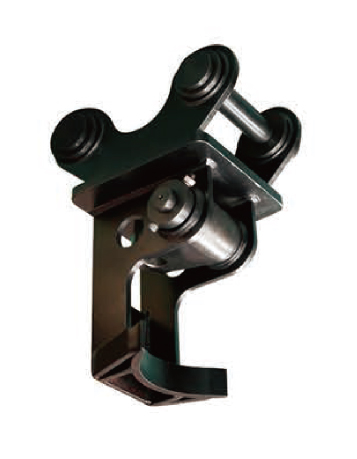

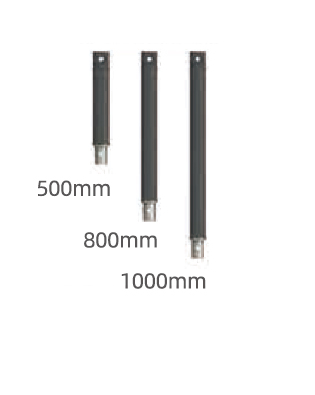

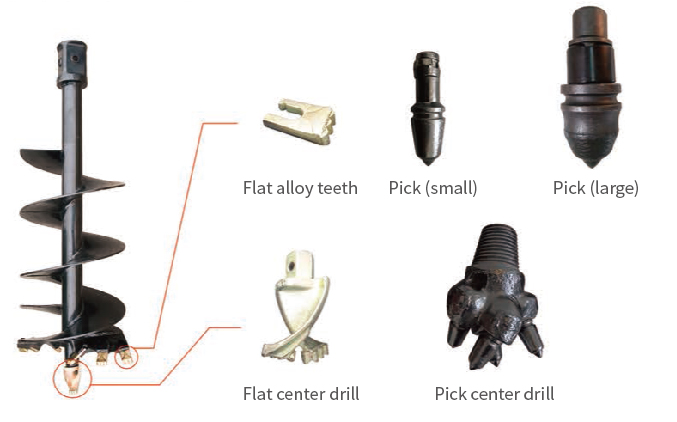

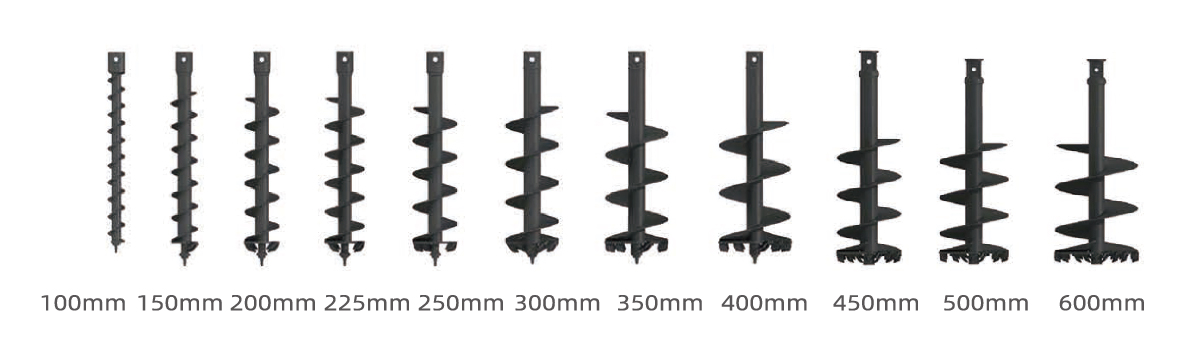

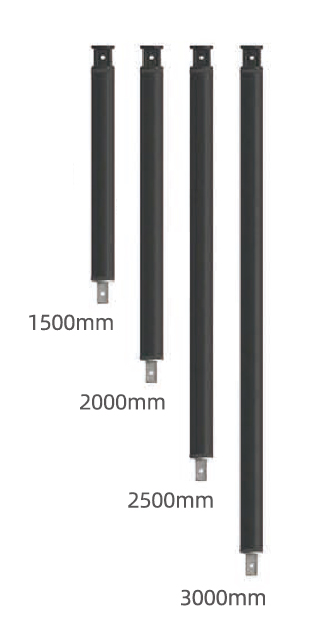

SYSTEM COMPONENTS
Get More Details on WBQ Pile Driving Equipment
application scenario
Why Choose WBQ Heavy-Duty Pile Drivers
Powerful, versatile solutions for complex piling projects
Multifunctional Design
Combines piling, excavation, lev-eling, and drilling in one machine.
Precision Operation
Real-time monitoring and guiding systems ensure accurate pile installation.
Reliable Components
YANMAR engine and KYB hydrau-lics ensure long-term perform-ance and safety.
Mobile Flexibility
360° rotation and high mobility adapt to diverse job site condi-tions.
